Thermal Jackets on Gate Valve Bank

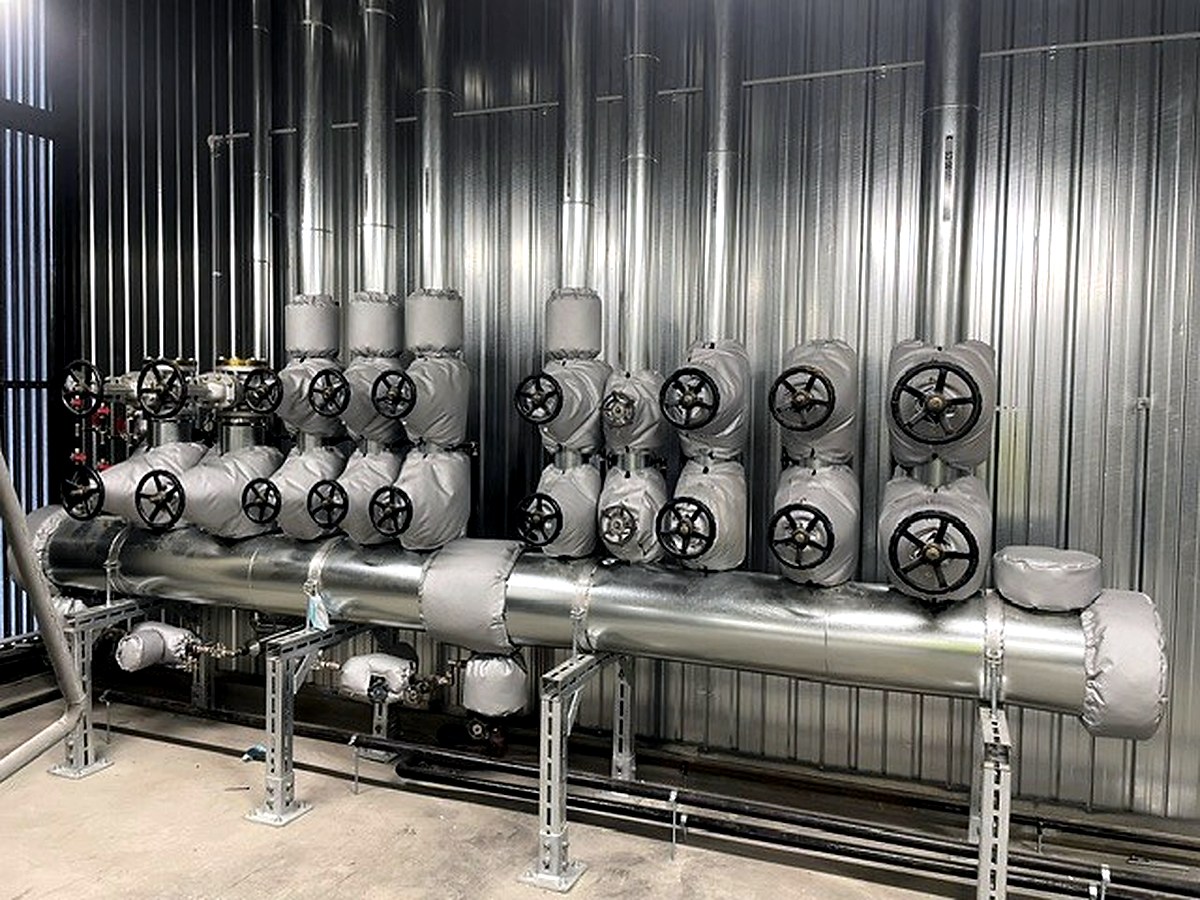

Removable thermal jackets across a full gate valve bank on a pressurised hot water distribution system, reducing heat loss while keeping handwheels accessible.
Browse real project examples from Environ Industries. Select a service category below to view work examples.
Select a service below to view real work examples across removable insulation jackets, pipe and vessel insulation, sheet metal cladding, and heat loss surveys.
Custom removable insulation jackets for valves, flanges, pumps, and equipment where heat loss reduction and maintenance access both matter.
Removable thermal jackets across a full gate valve bank on a pressurised hot water distribution system, reducing heat loss while keeping handwheels accessible.

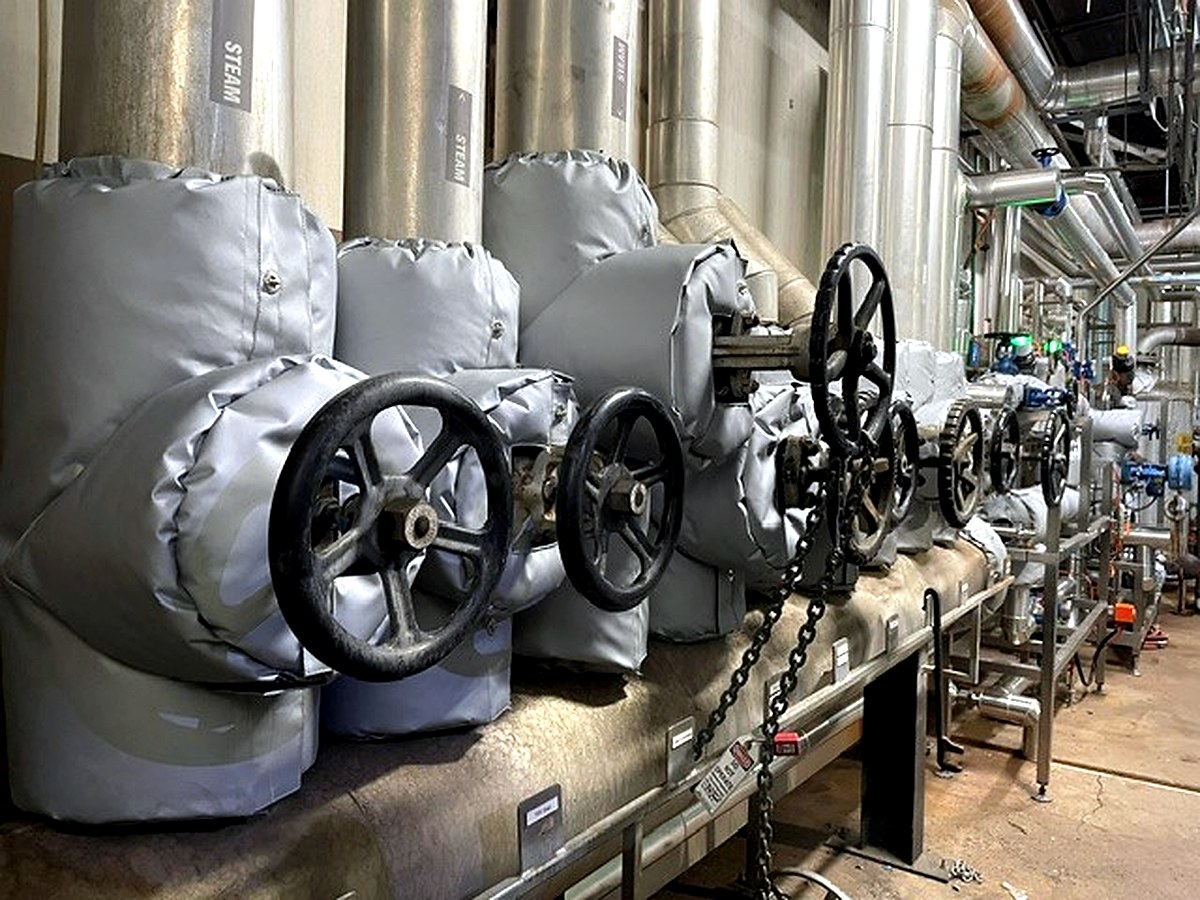

Thermal jackets installed across a row of steam system valves, reducing heat loss and surface temperatures on high-pressure steam supply pipework.

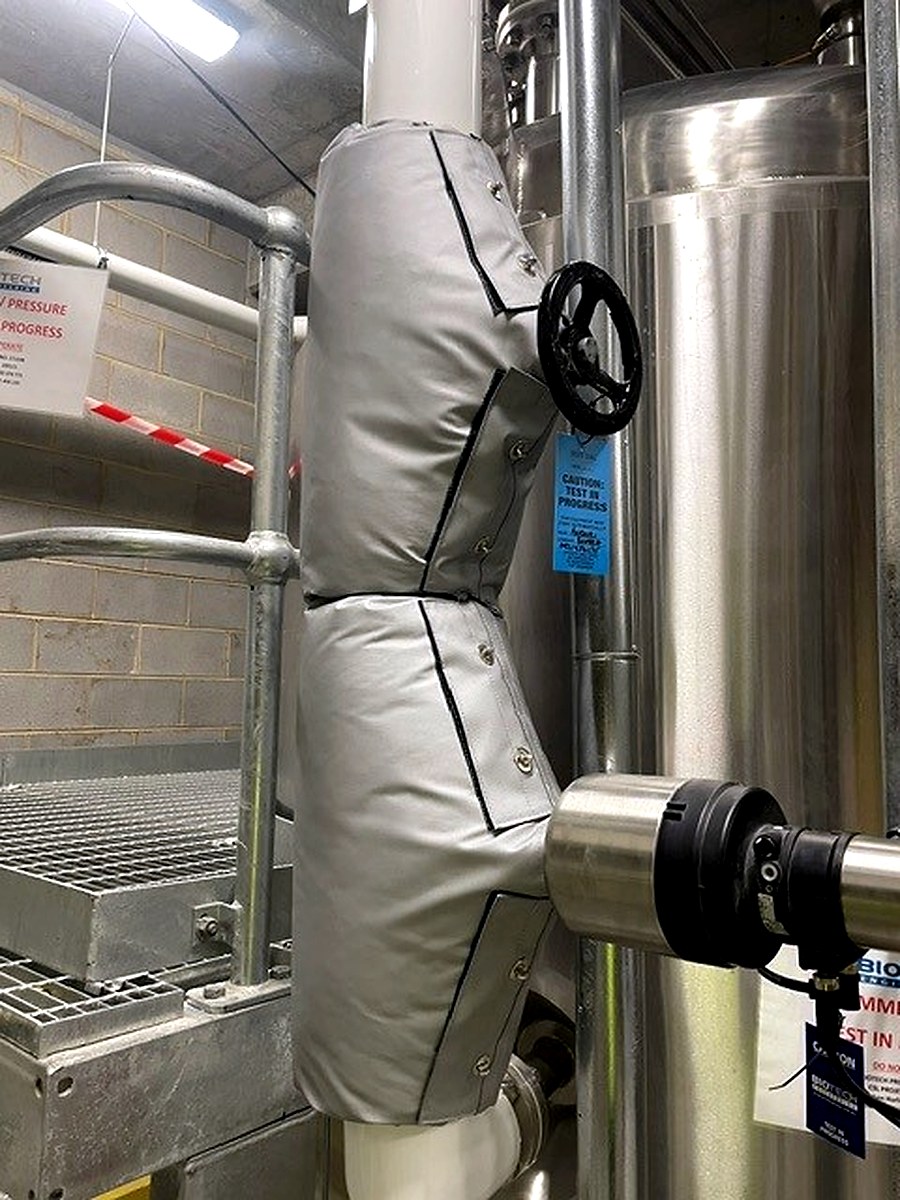

Close-fitted removable thermal jacket on a process valve in a clean industrial environment, allowing full maintenance access while eliminating heat loss.
Removable thermal jackets on high-pressure steam and condensate valve assemblies, maintaining system efficiency and enabling safe maintenance access.

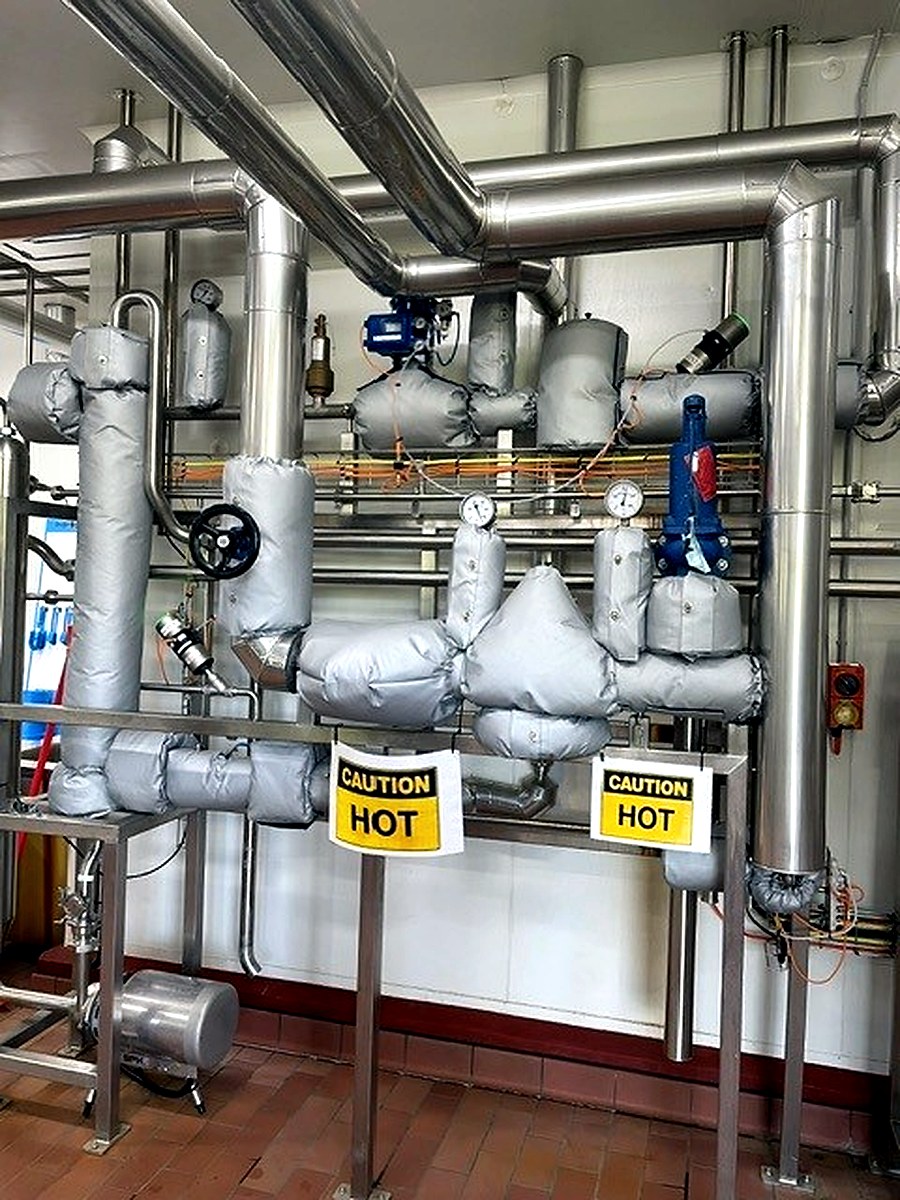

Thermal jackets fitted to complex hot process pipework, eliminating CAUTION HOT hazard zones and reducing heat loss from exposed system components.

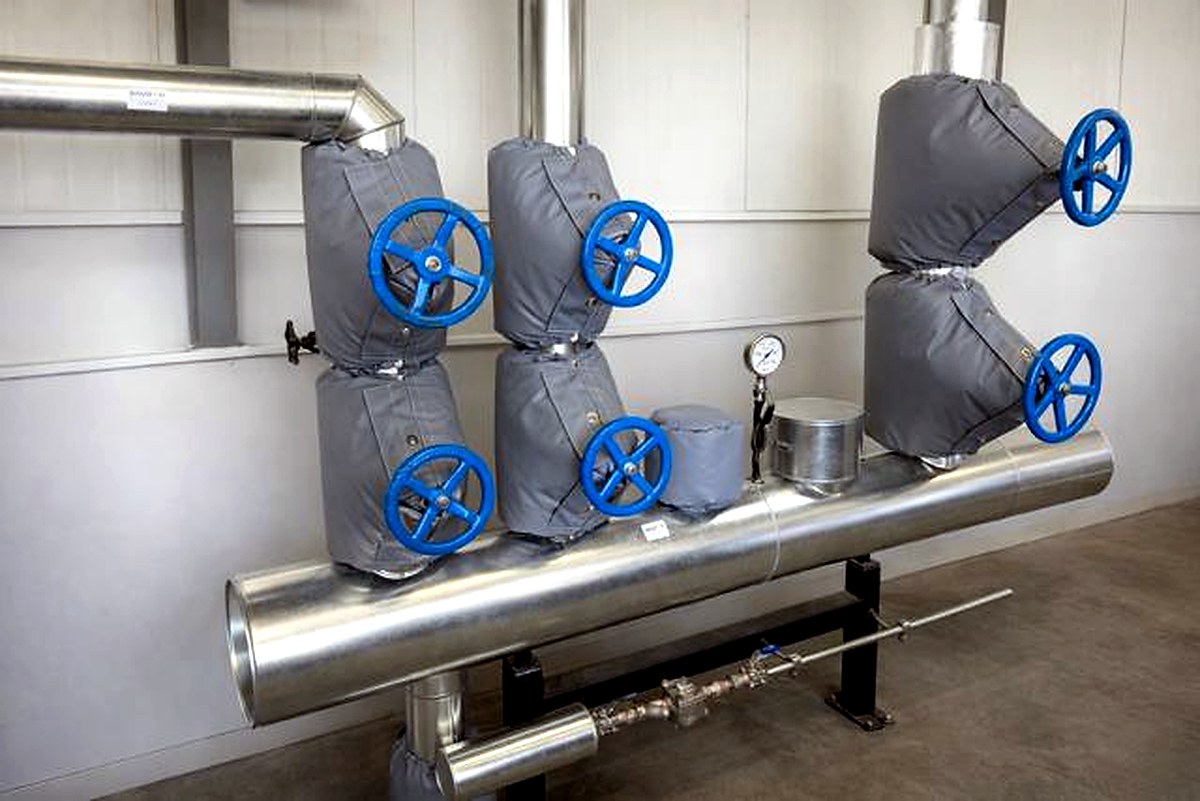

Clean row of thermal jackets fitted to a valve bank, covering each valve body while keeping all handwheels fully accessible for operations.

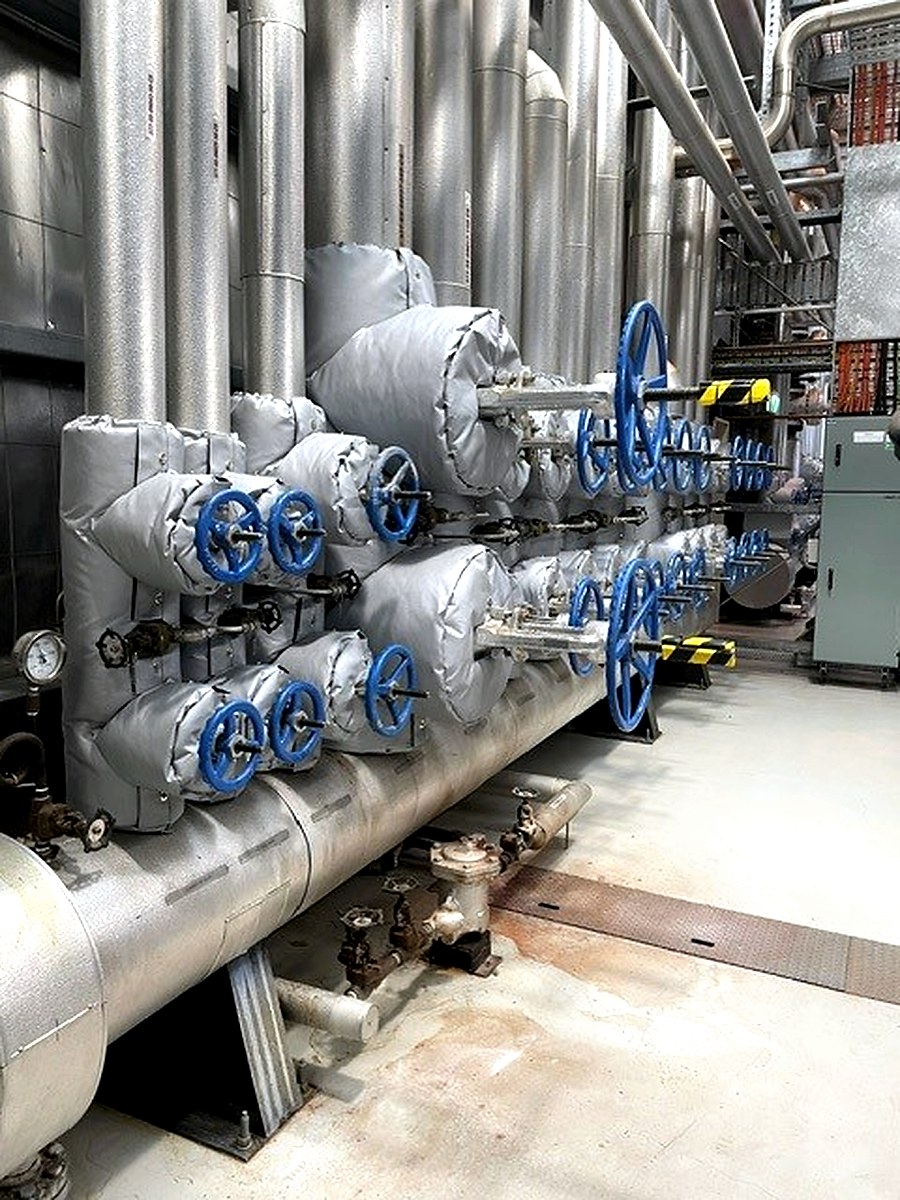

Full thermal jacket installation across a valve manifold on a large-diameter hot water distribution system, maintaining thermal performance throughout.
Large-scale thermal jacket installation covering valves, pipe connections, and actuators across multiple tiers of a complex industrial process system.
Thermal jackets across multiple levels of pipe manifolds and process equipment, delivering consistent heat retention across a complex industrial layout.

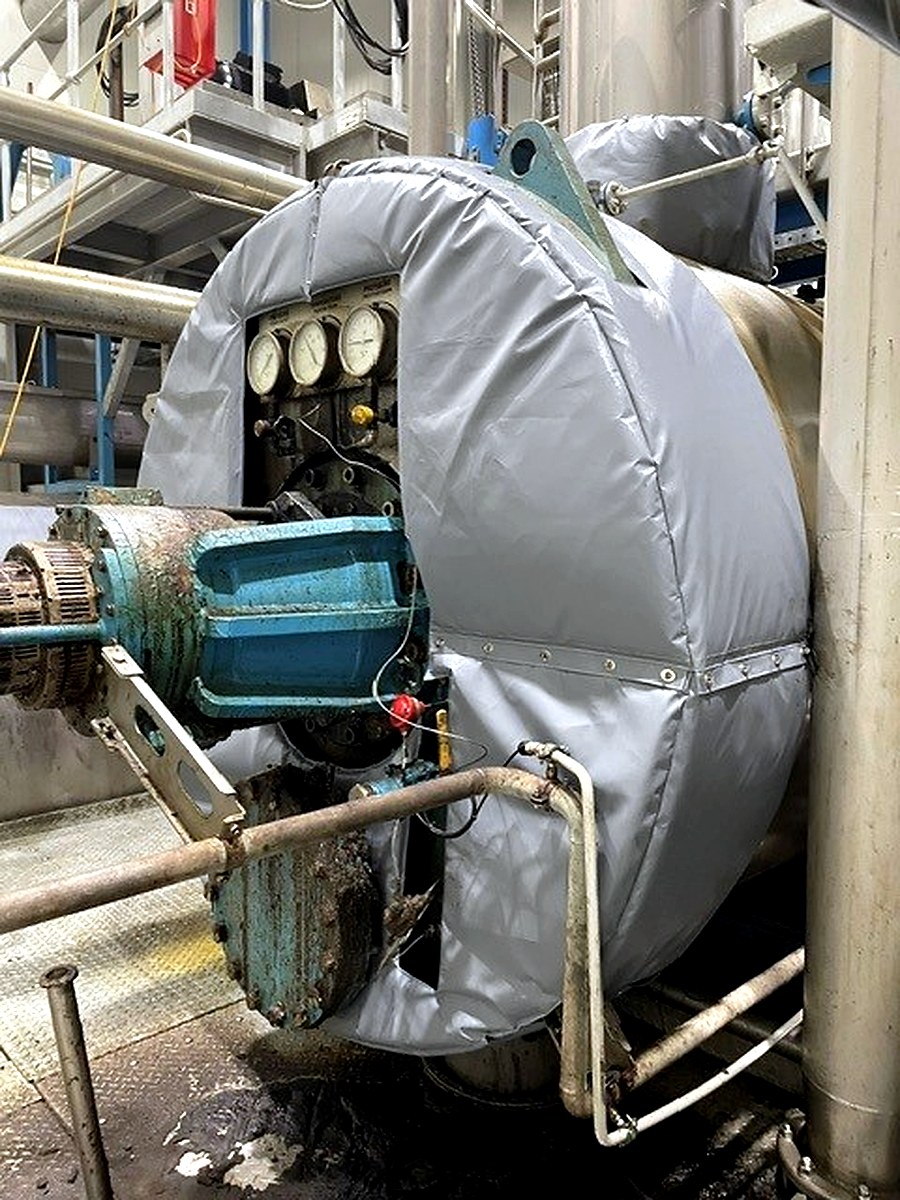

Large custom thermal jacket fitted to a heavy industrial pump casing, reducing heat loss from the surface and improving the safety of the surrounding area.
Complete thermal jacket scope covering pumps, valves, and connections across a high-specification industrial plant, built to industrial standard from commissioning.
Thermal jacket protection applied to pump connections and pipework at the base of a large process vessel, reducing heat loss and improving site safety.

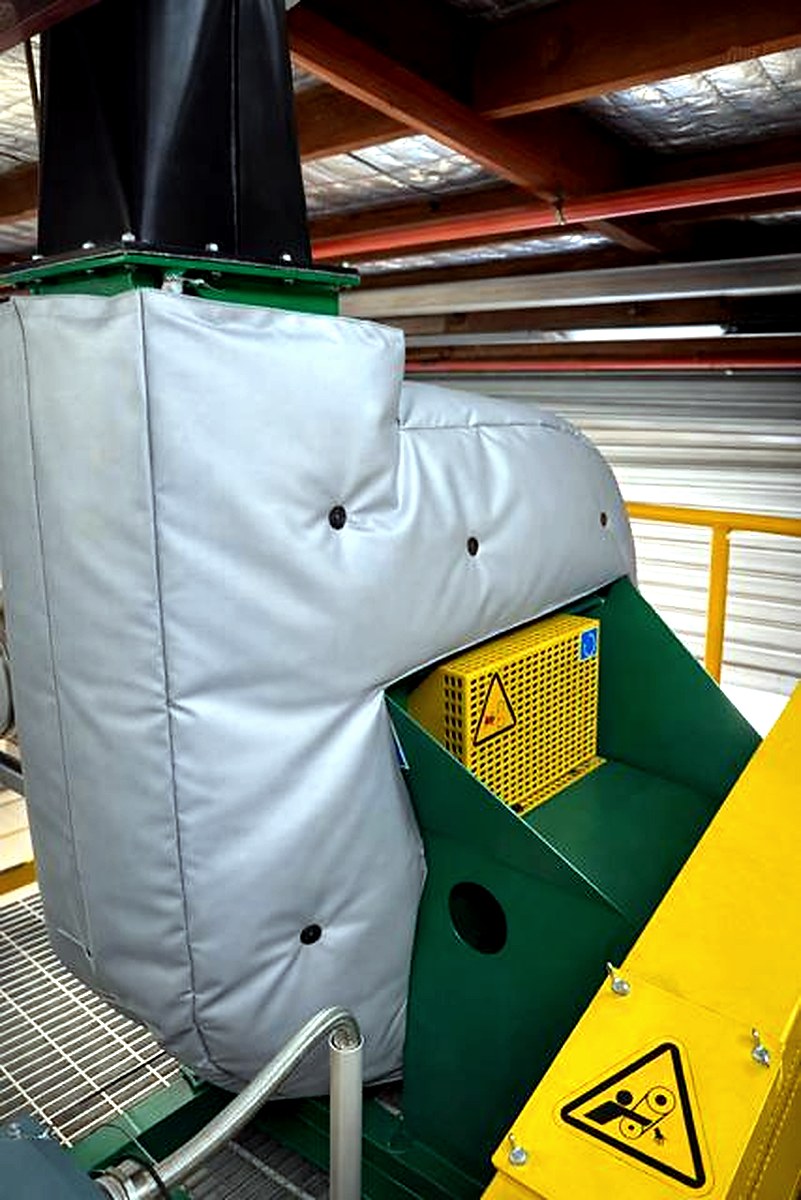

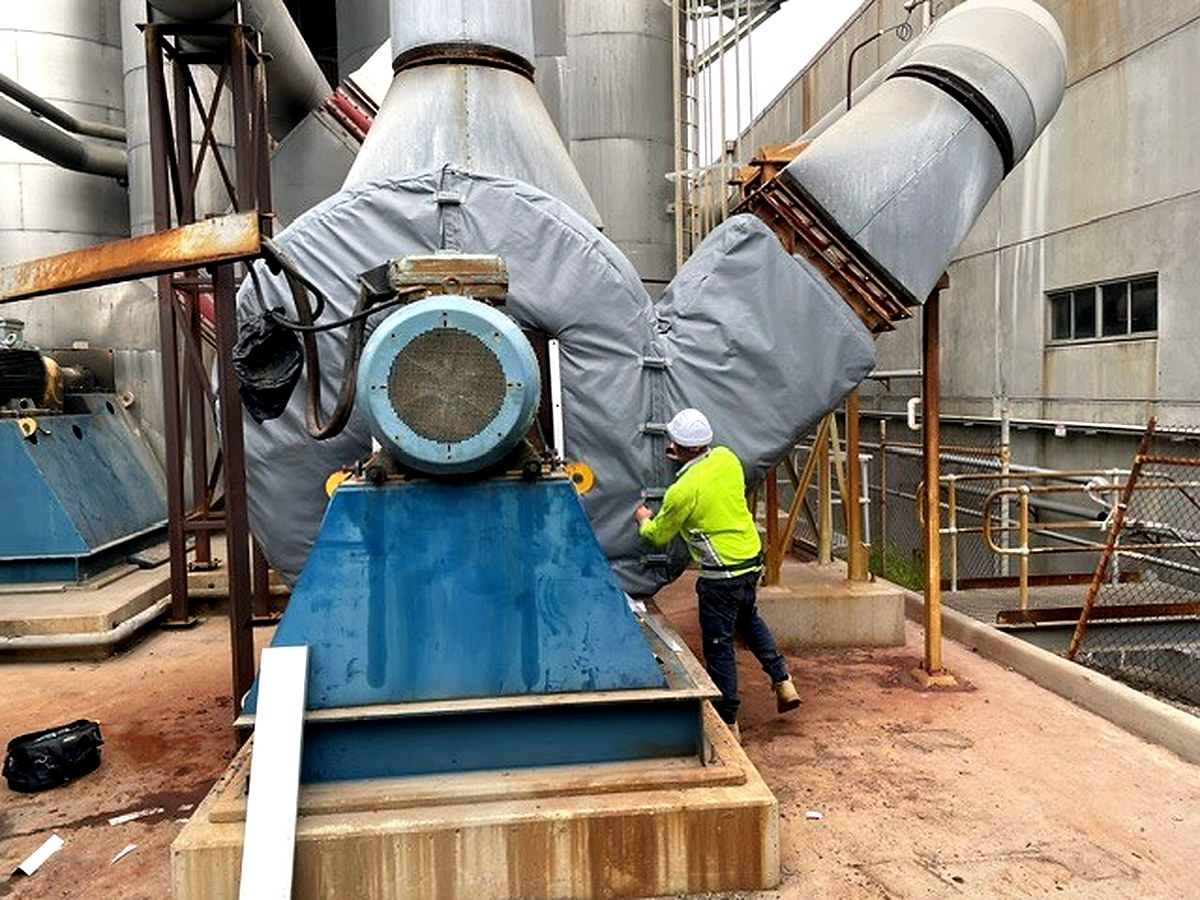

Thermal jacket being installed over a large industrial fan housing at an outdoor industrial site to reduce surface temperatures and heat loss.

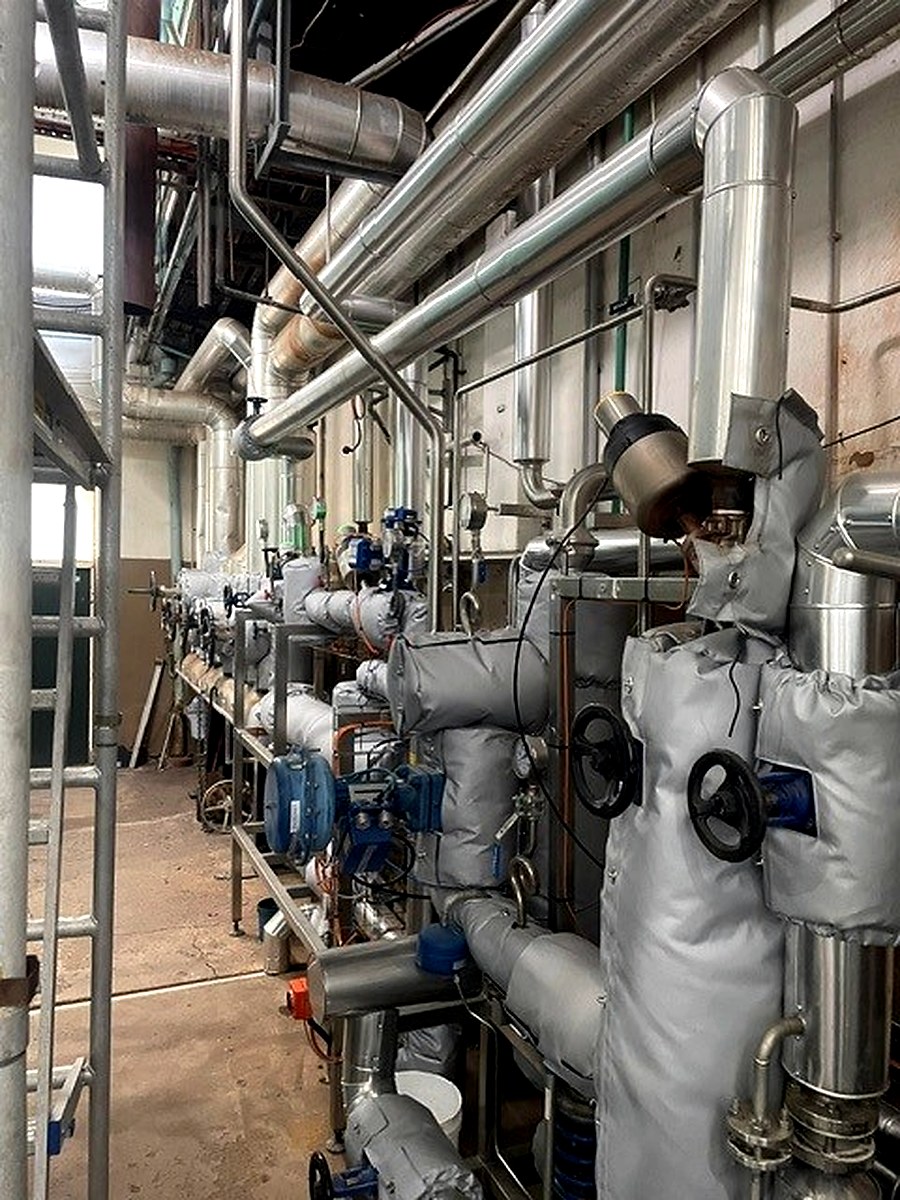

Thermal jackets installed along an extended industrial pipe corridor, covering valve assemblies at regular intervals to reduce heat loss across the full run.

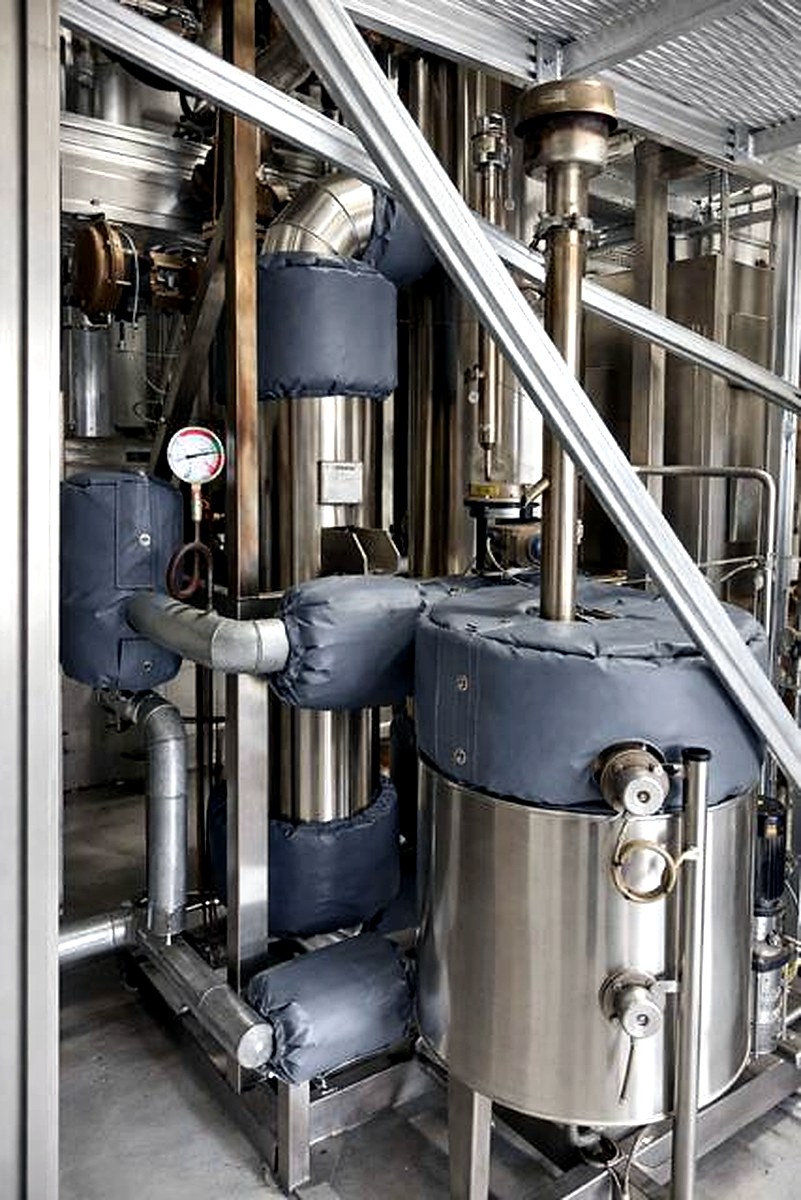

Dark-grey thermal jackets fitted around a complex process vessel assembly with pipework connections, controlling heat loss in a tight industrial mechanical space.

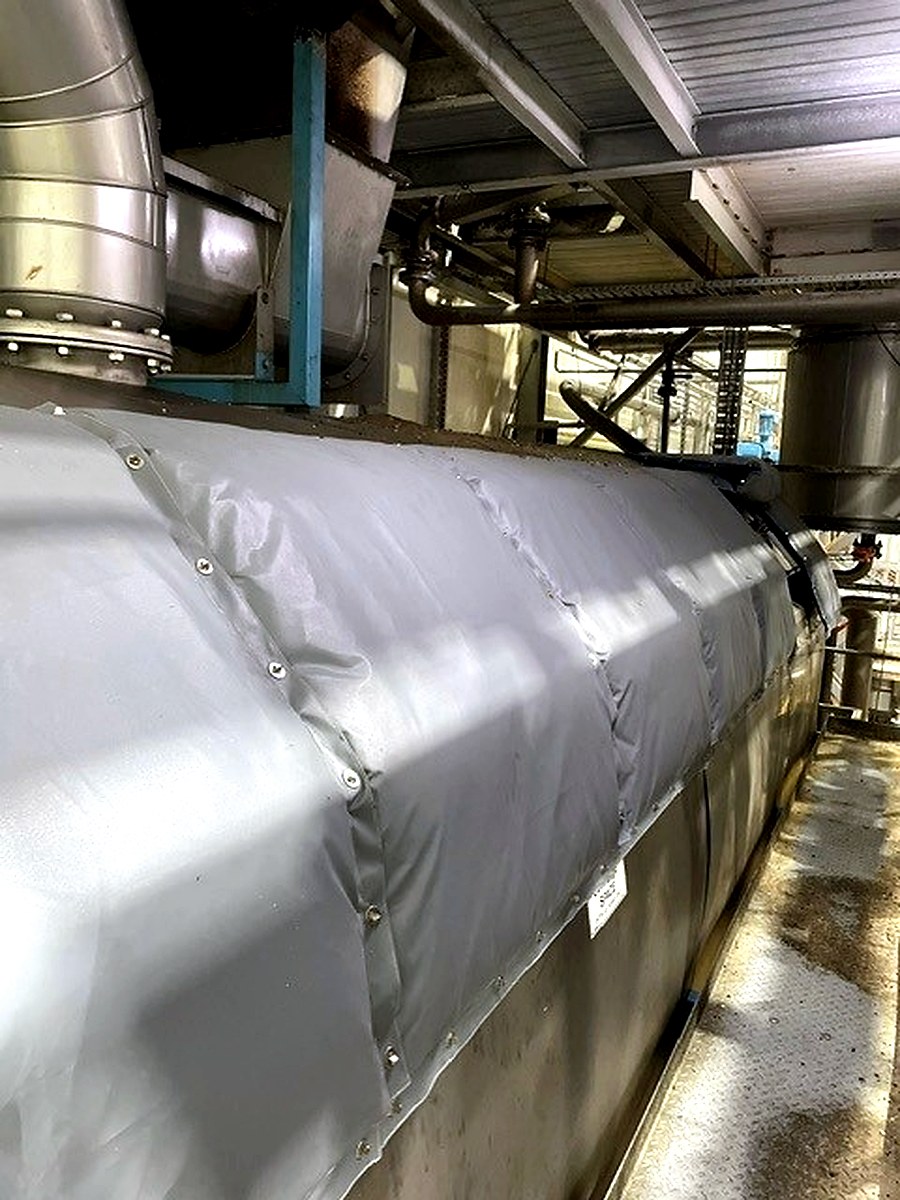

Custom large-format thermal jacket panel-fitted to an industrial vessel body, controlling heat loss across a significant insulation surface area.
Removable thermal jackets on a steam supply valve assembly, reducing heat loss from exposed components and keeping clear access for routine operations.

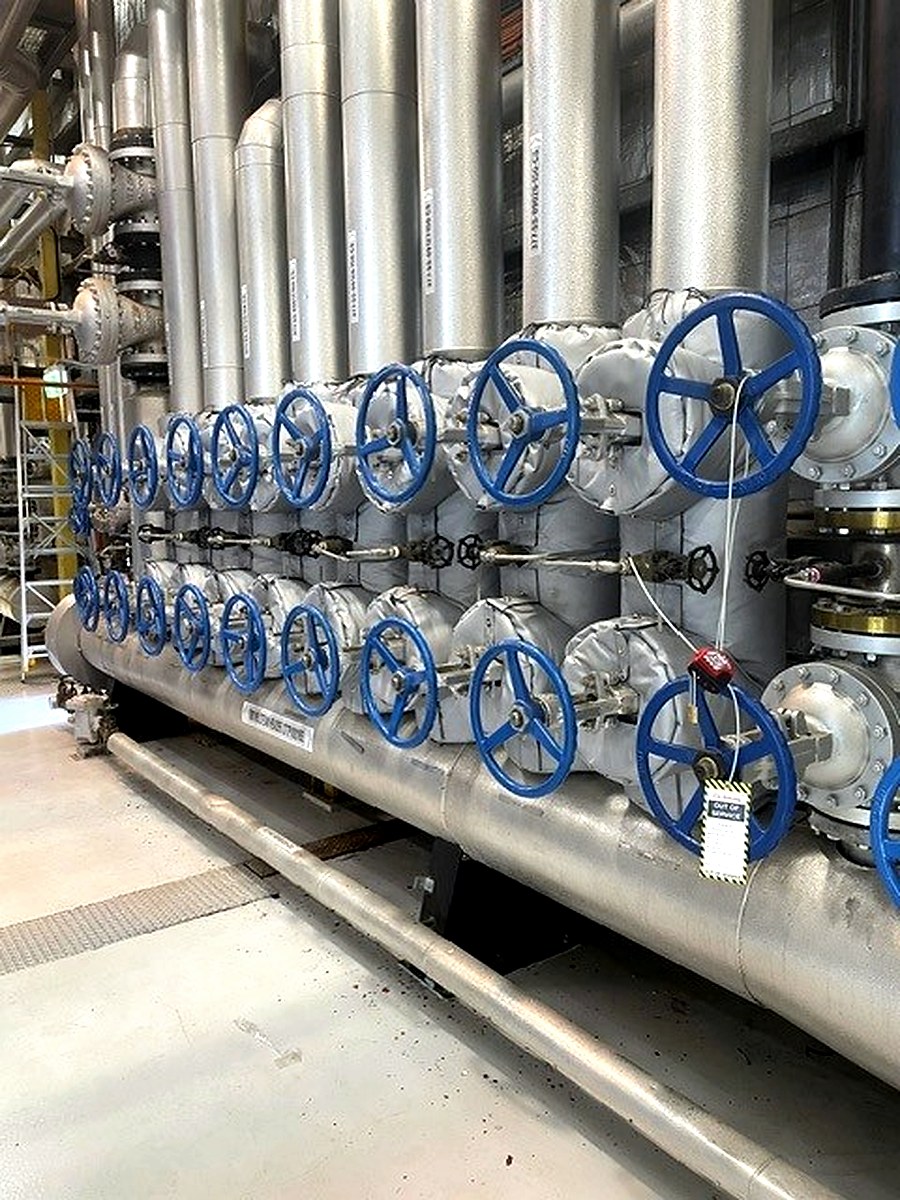

Multiple insulated valve assemblies on a large process manifold, reducing heat loss and maintaining safe surface temperatures across a high-density system.

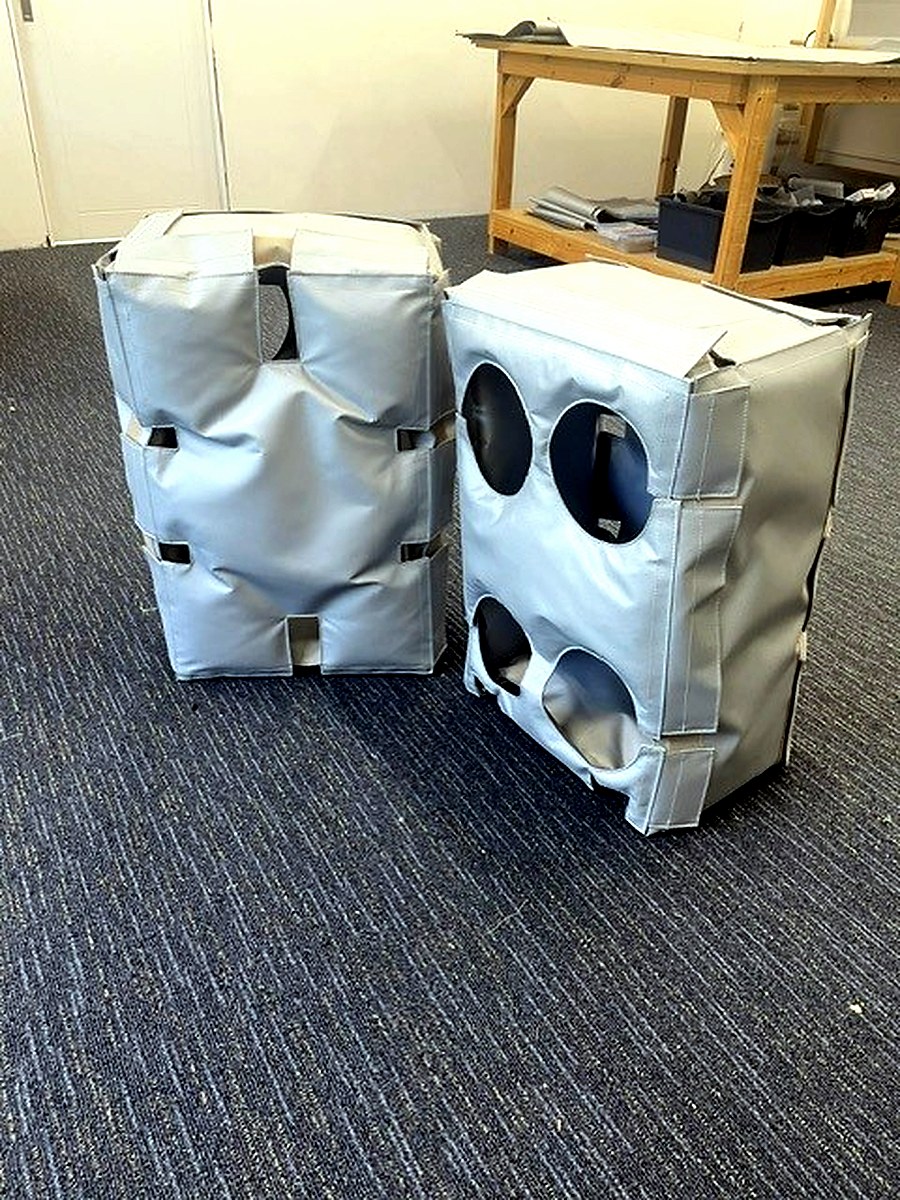

Purpose-made thermal jacket enclosures fabricated to custom dimensions prior to site installation, ready to be fitted to the specific equipment.

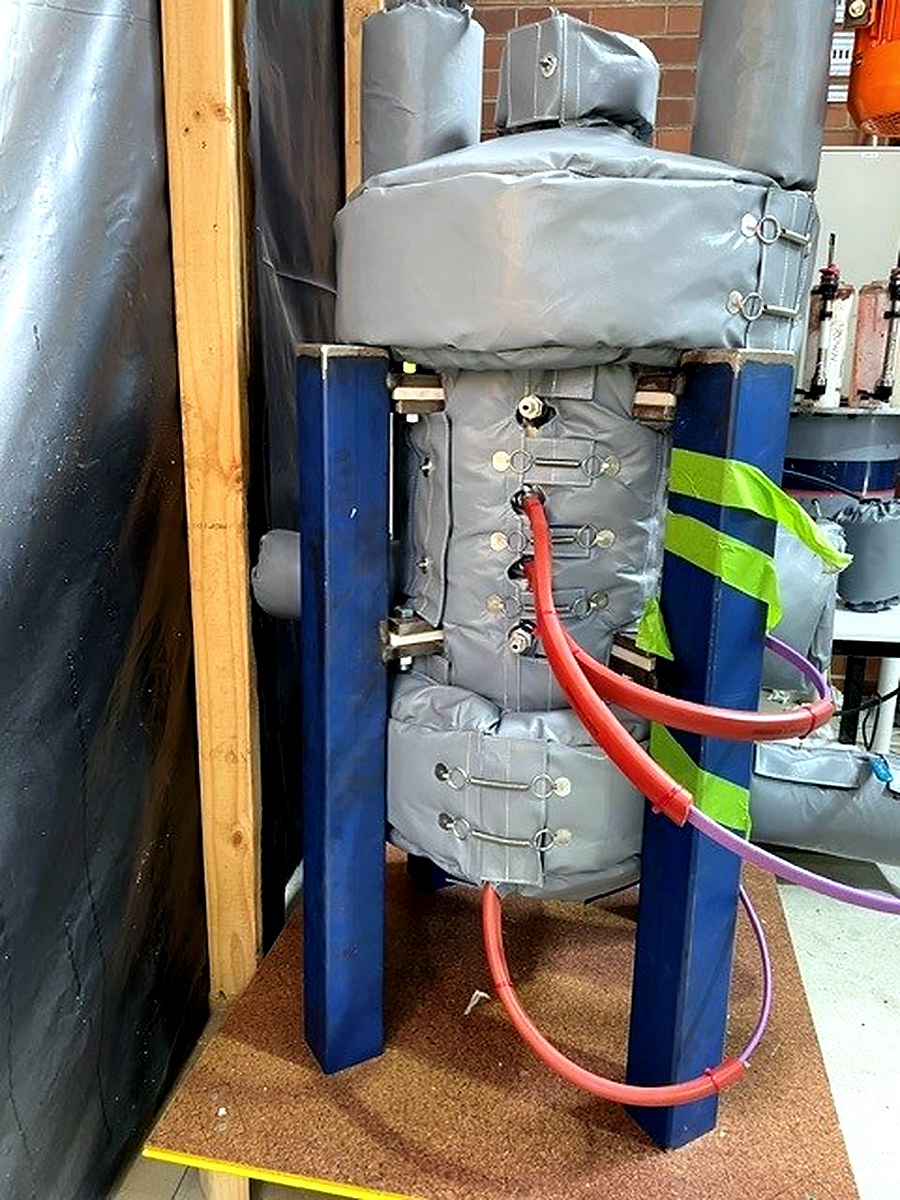

Custom-fabricated thermal jackets fitted to a complex vertical pump and vessel assembly, reducing heat loss and protecting equipment between maintenance cycles.

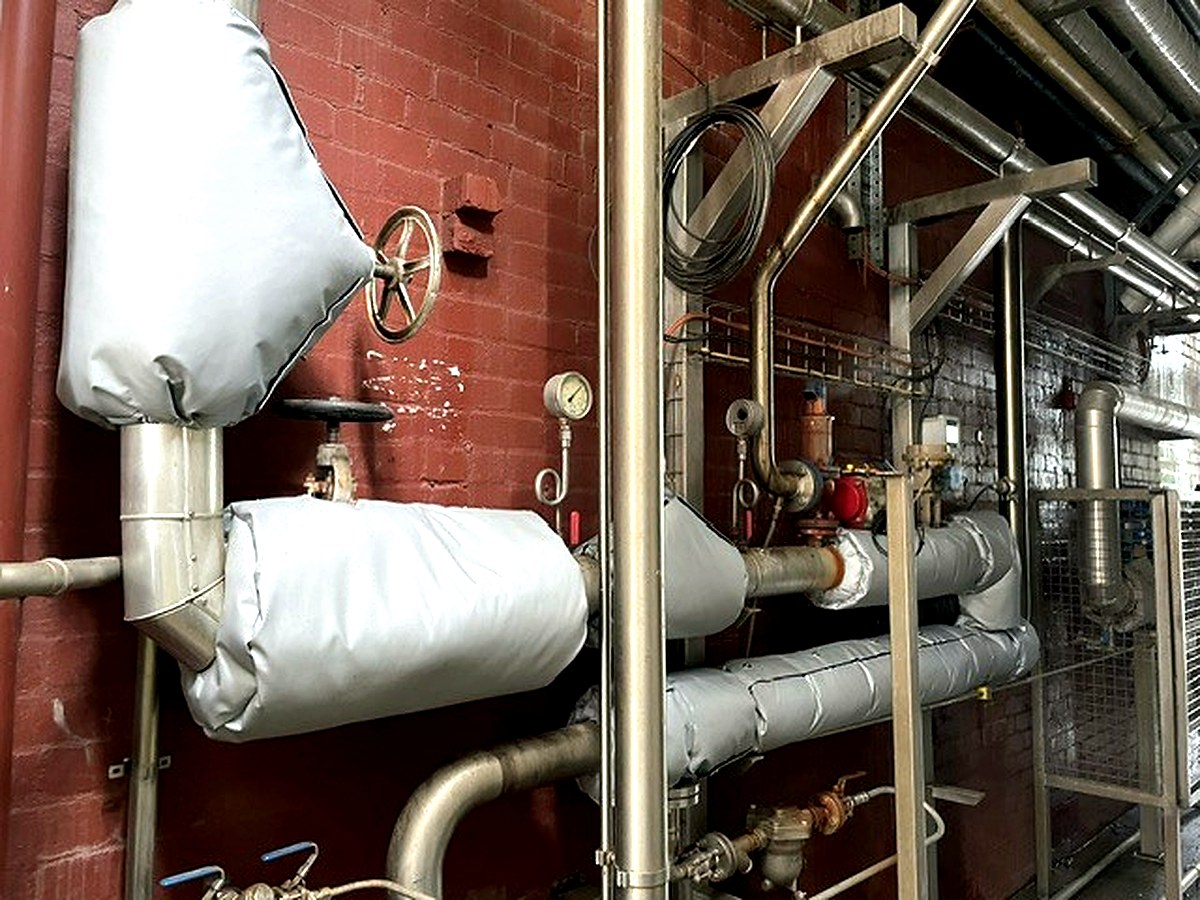

Thermal jackets installed on plant room pipework and valves, protecting maintenance staff from hot surfaces and reducing heat loss.

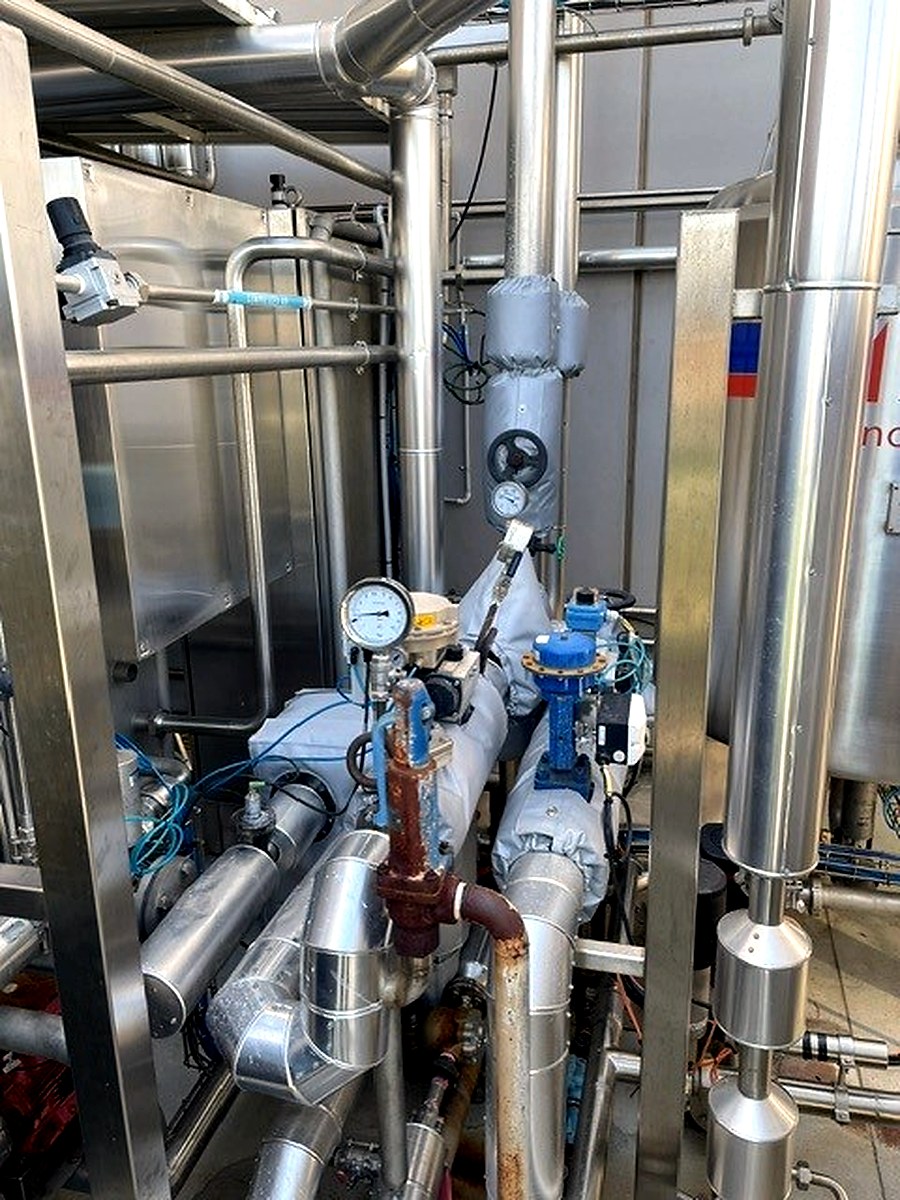

Thermal jacket installation in a congested process area, protecting pipe connections and valves where fixed insulation would impede maintenance access.

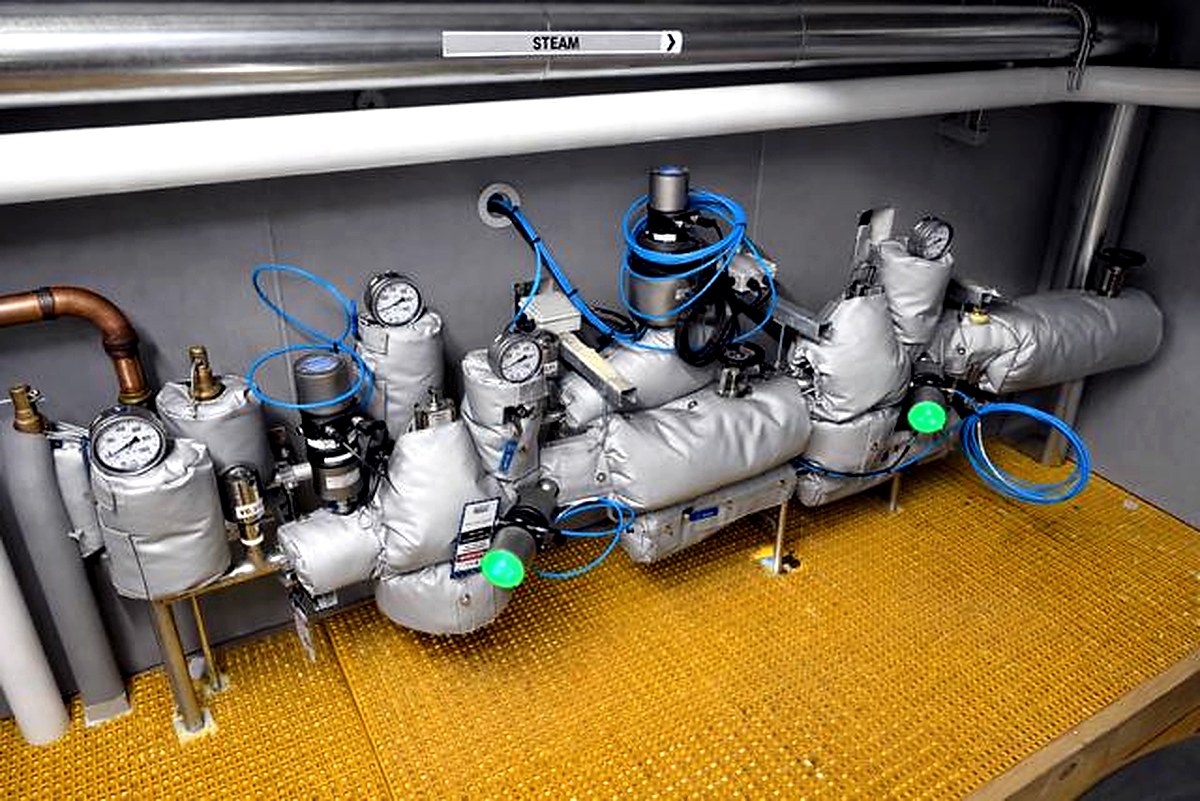

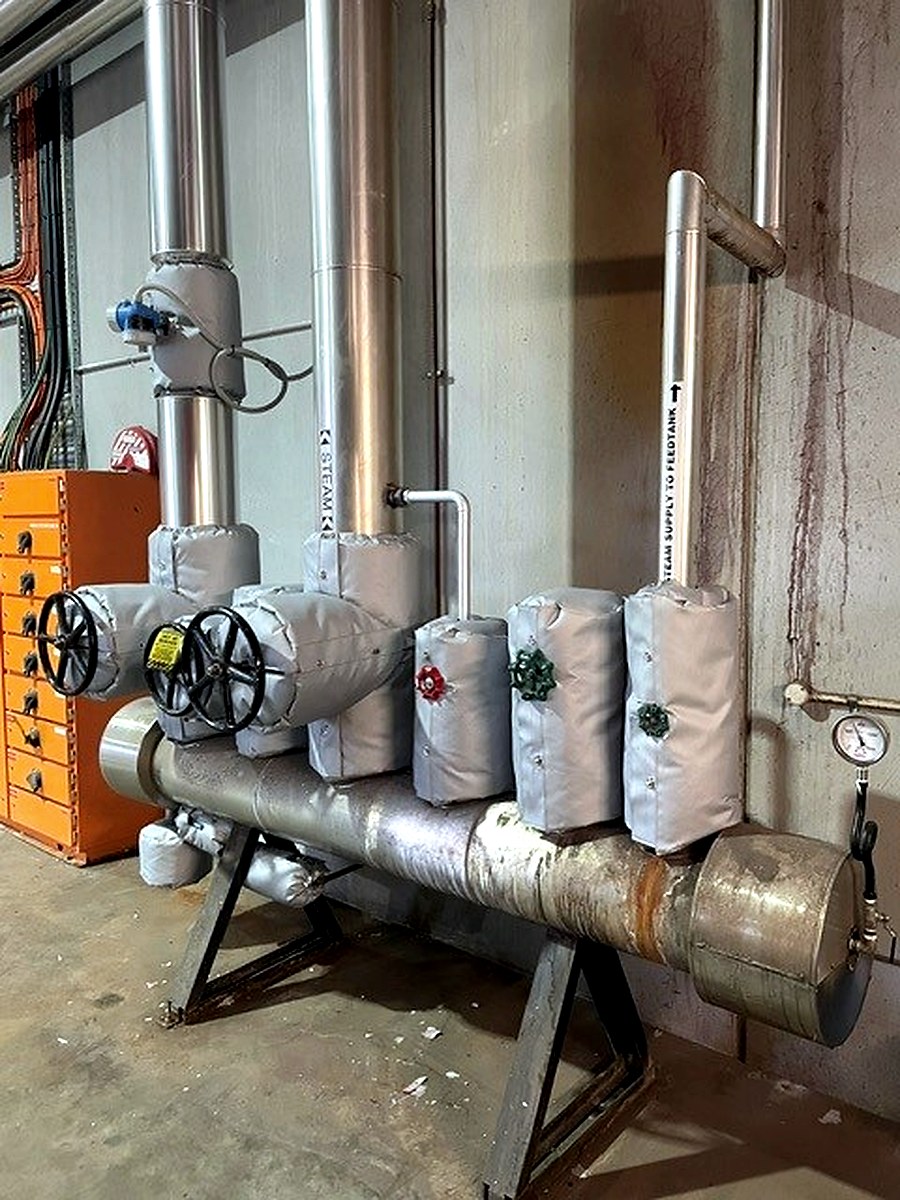

Multiple thermal jackets on steam header valve assemblies with pressure gauges, reducing heat loss from uninsulated steam system components.
Thermal jackets fitted to a pump and pipework in an exposed outdoor plant area, providing heat retention and protection from environmental conditions.

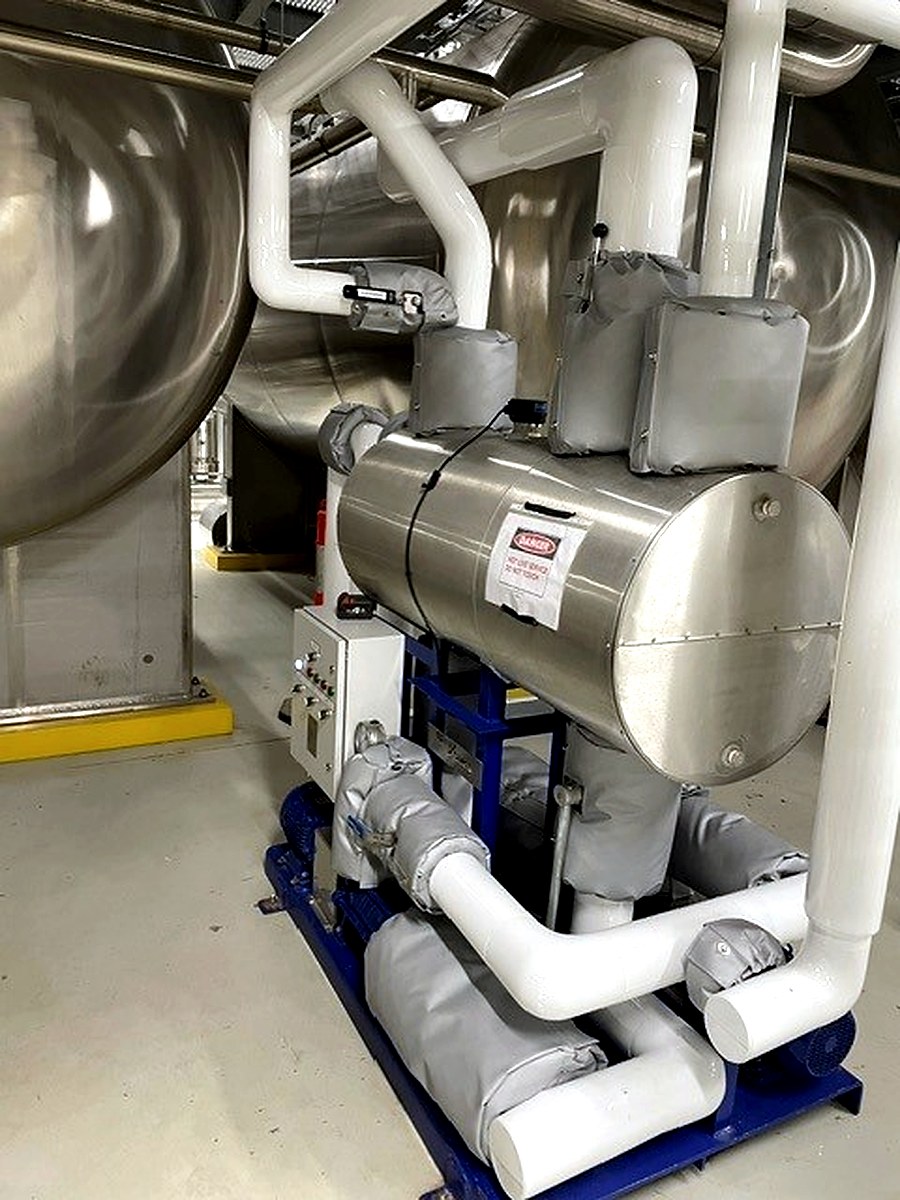

Thermal jacket installation across connections, pumps, and valves in a newly commissioned industrial facility, incorporated from the outset.

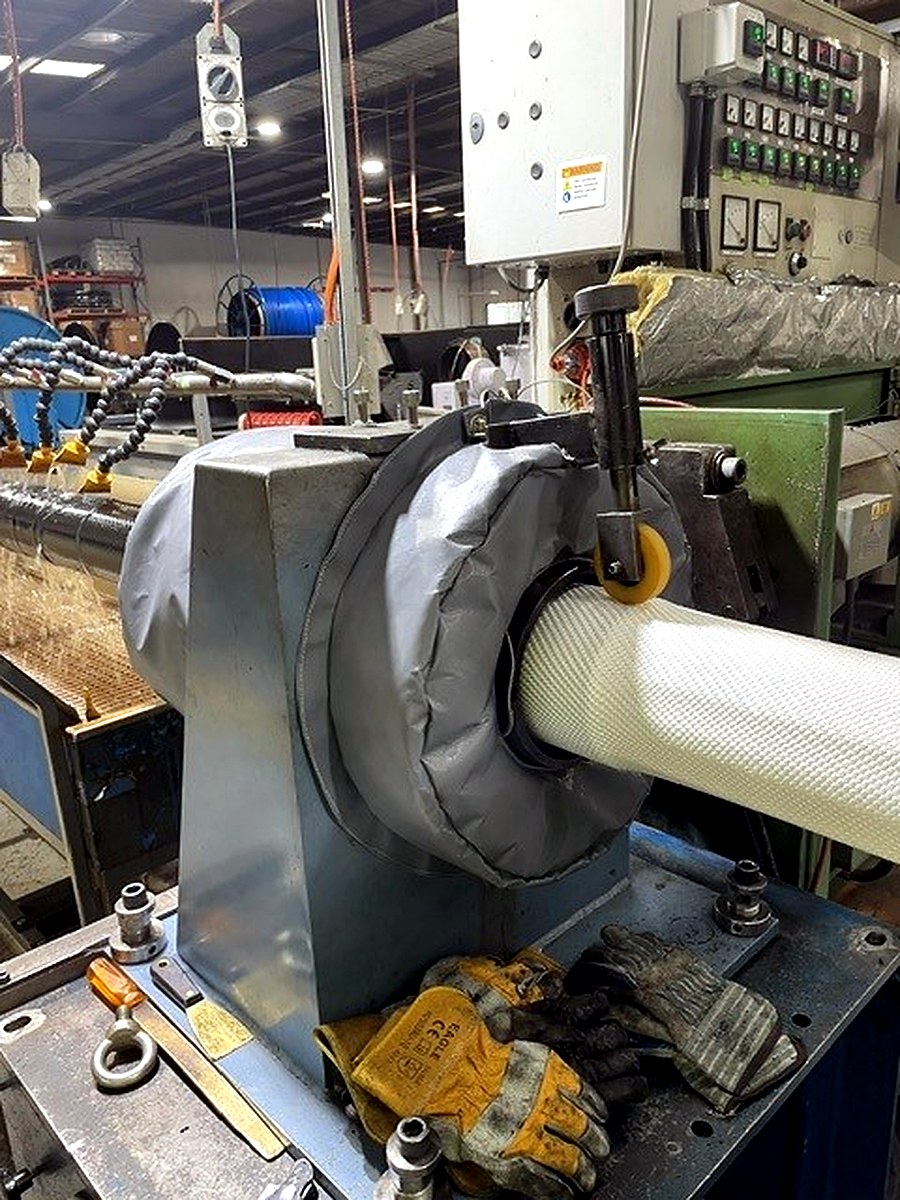

Custom thermal jacket fitted to an industrial machine bearing housing, reducing heat loss from a high-temperature rotating equipment component.

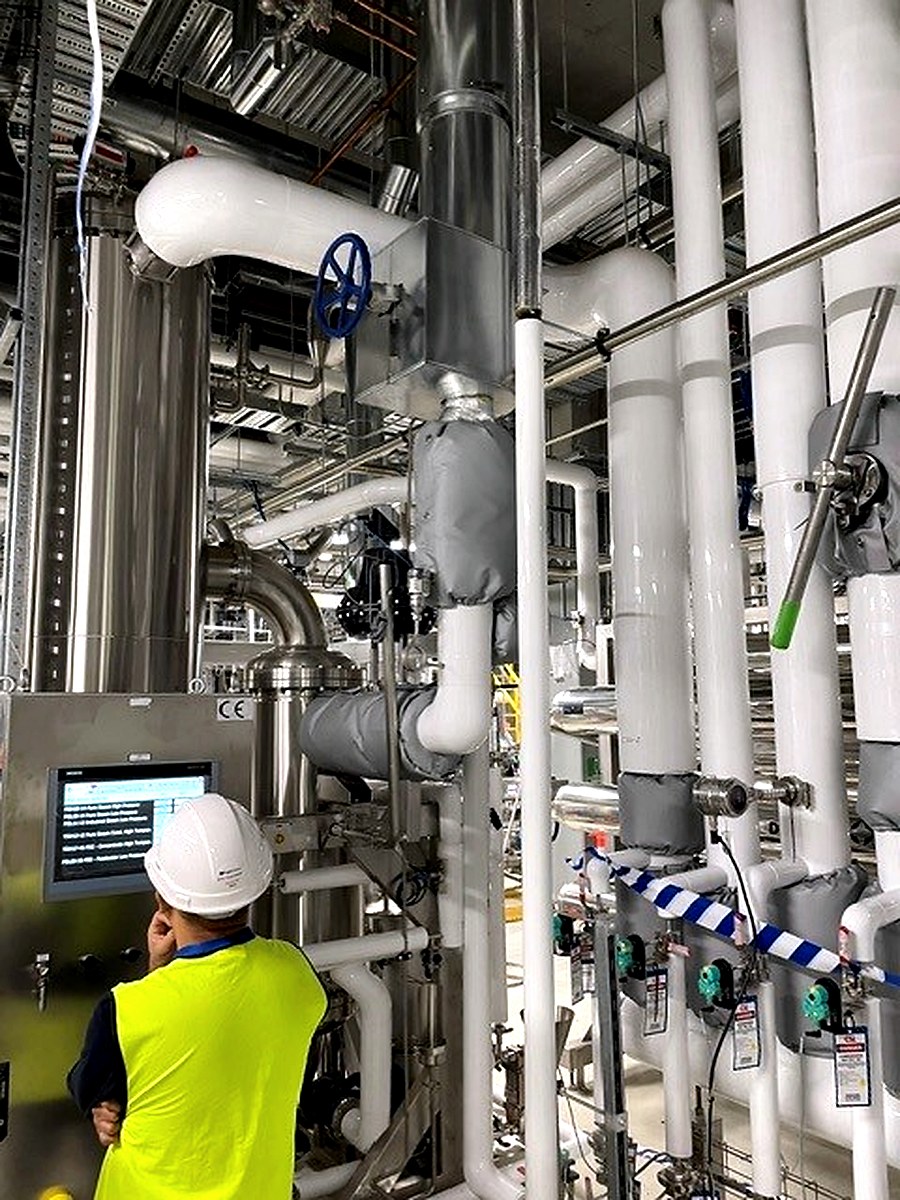

Thermal jackets fitted across complex pipe connections and process valves, improving thermal performance and reducing exposed surface temperatures.

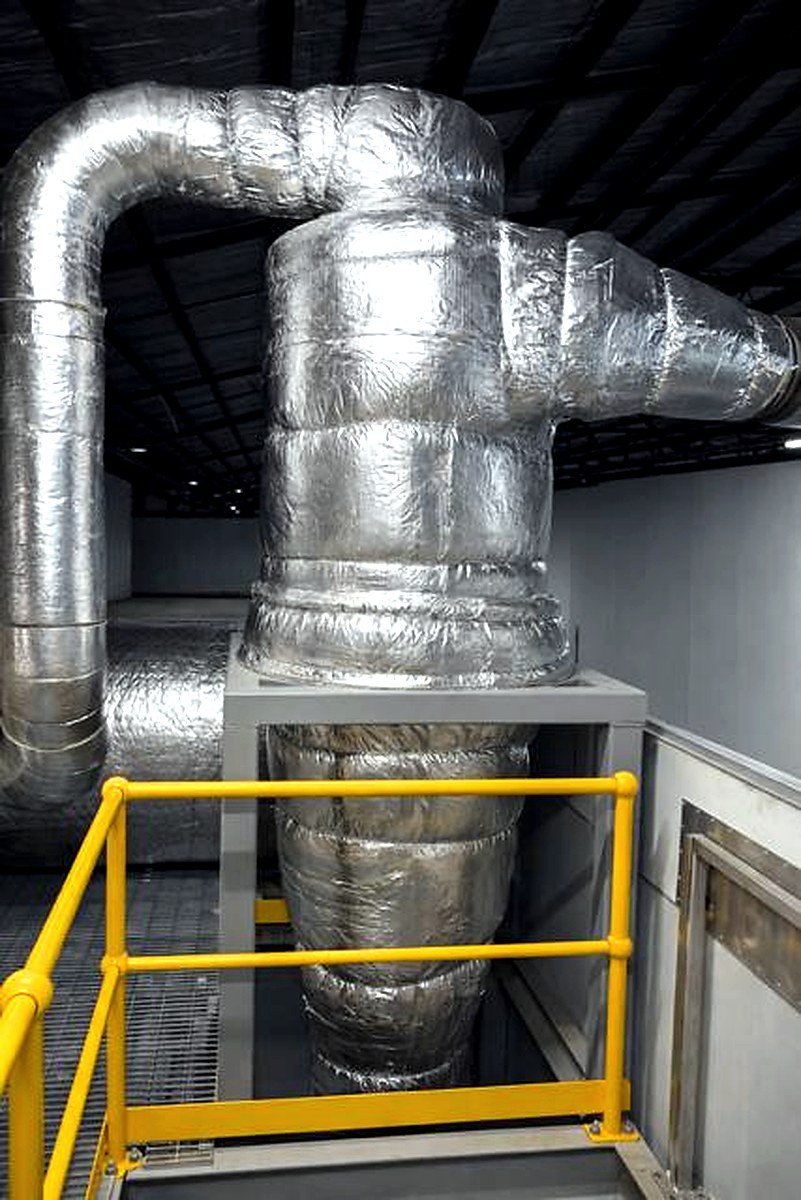

Custom insulation applied across a large industrial process housing and connected ducting, controlling heat loss from a significant surface area at height.
Plant room installation combining thermal jackets on lower-level valves with clad overhead pipework runs for full-scope thermal coverage.

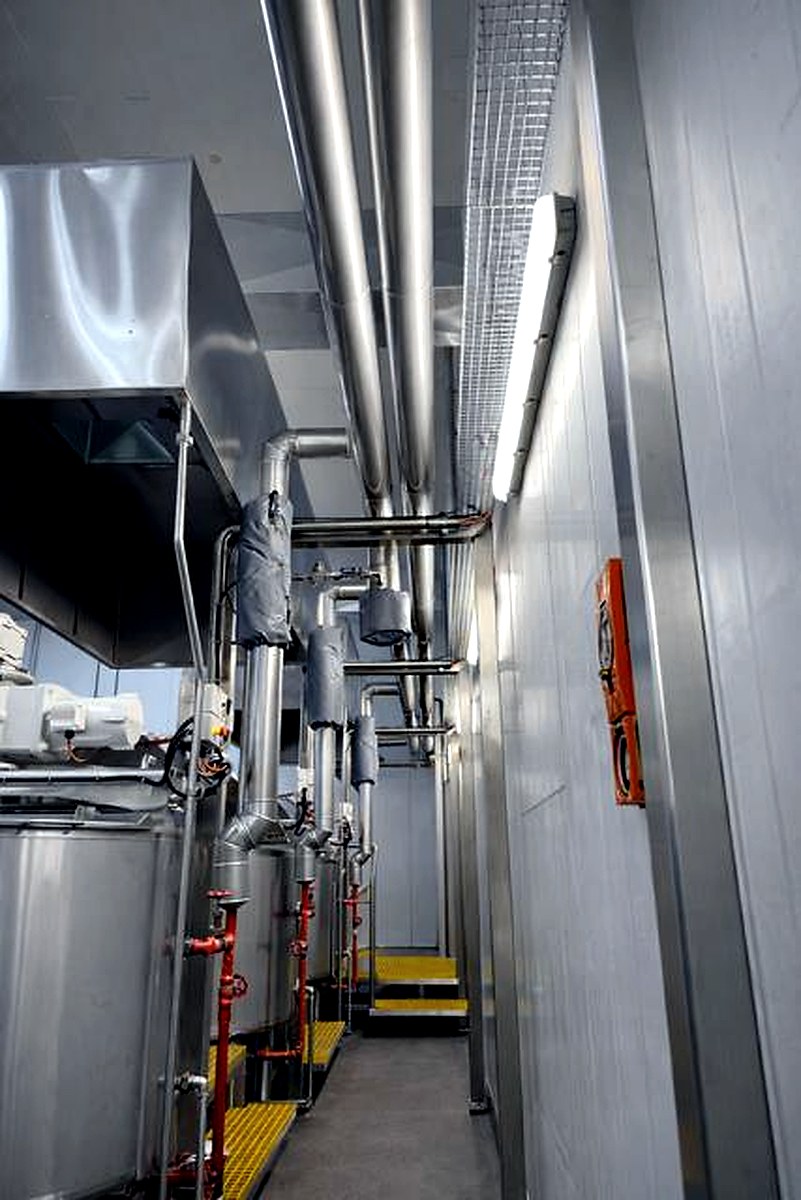

Thermal jackets fitted to pipe connections and fittings along an industrial plant room corridor, maintaining temperature control across the full service run.
Industrial insulation for pipework, vessels, tanks, and mechanical systems, helping reduce heat transfer, improve performance, and protect critical assets.
Foil-faced thermal insulation applied to a large industrial motor assembly, controlling heat transfer and improving energy efficiency in a factory environment.

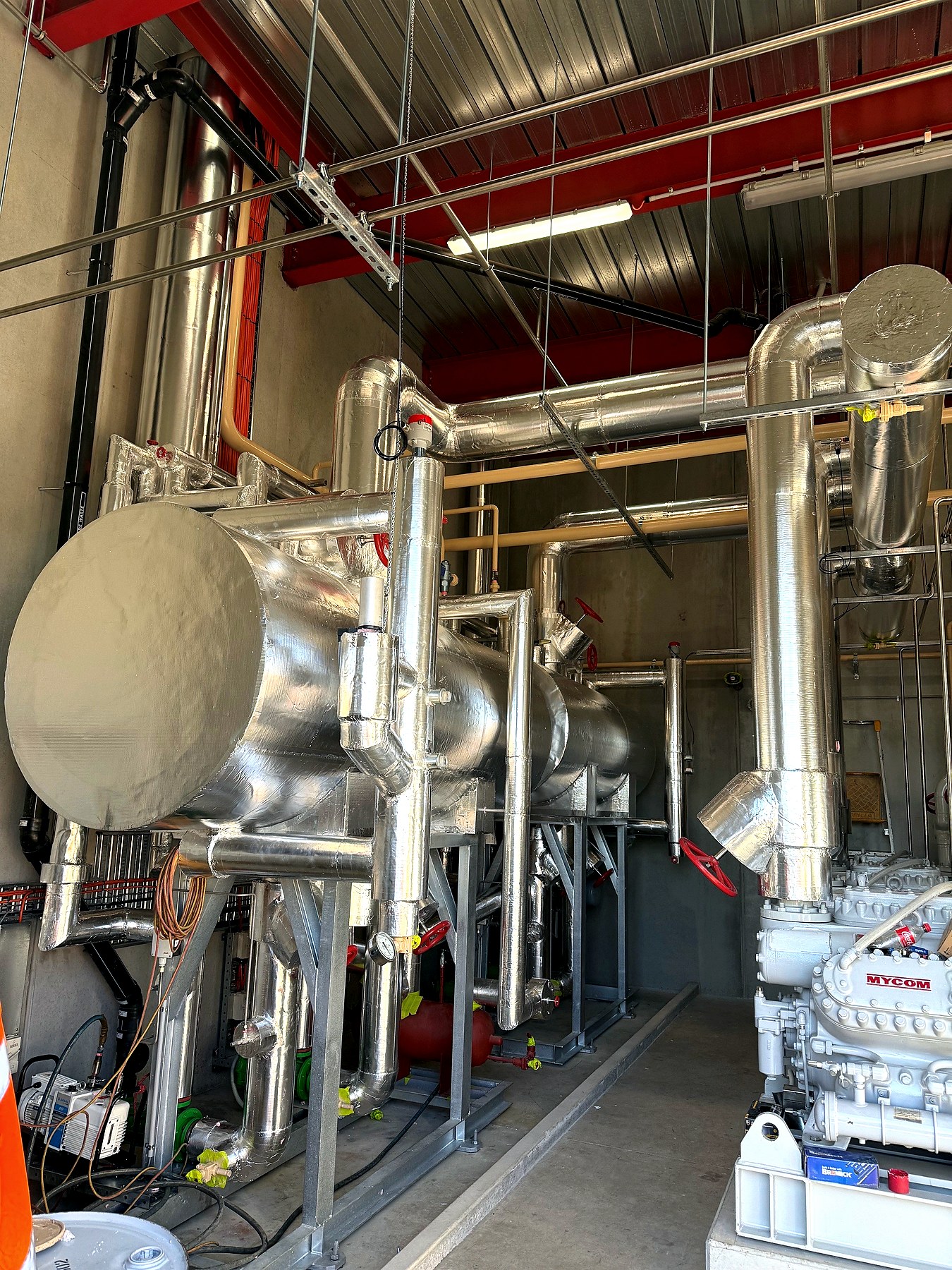

Foil-faced thermal insulation installed on process vessels and associated pipework on a factory skid unit, ready for site commissioning and installation.

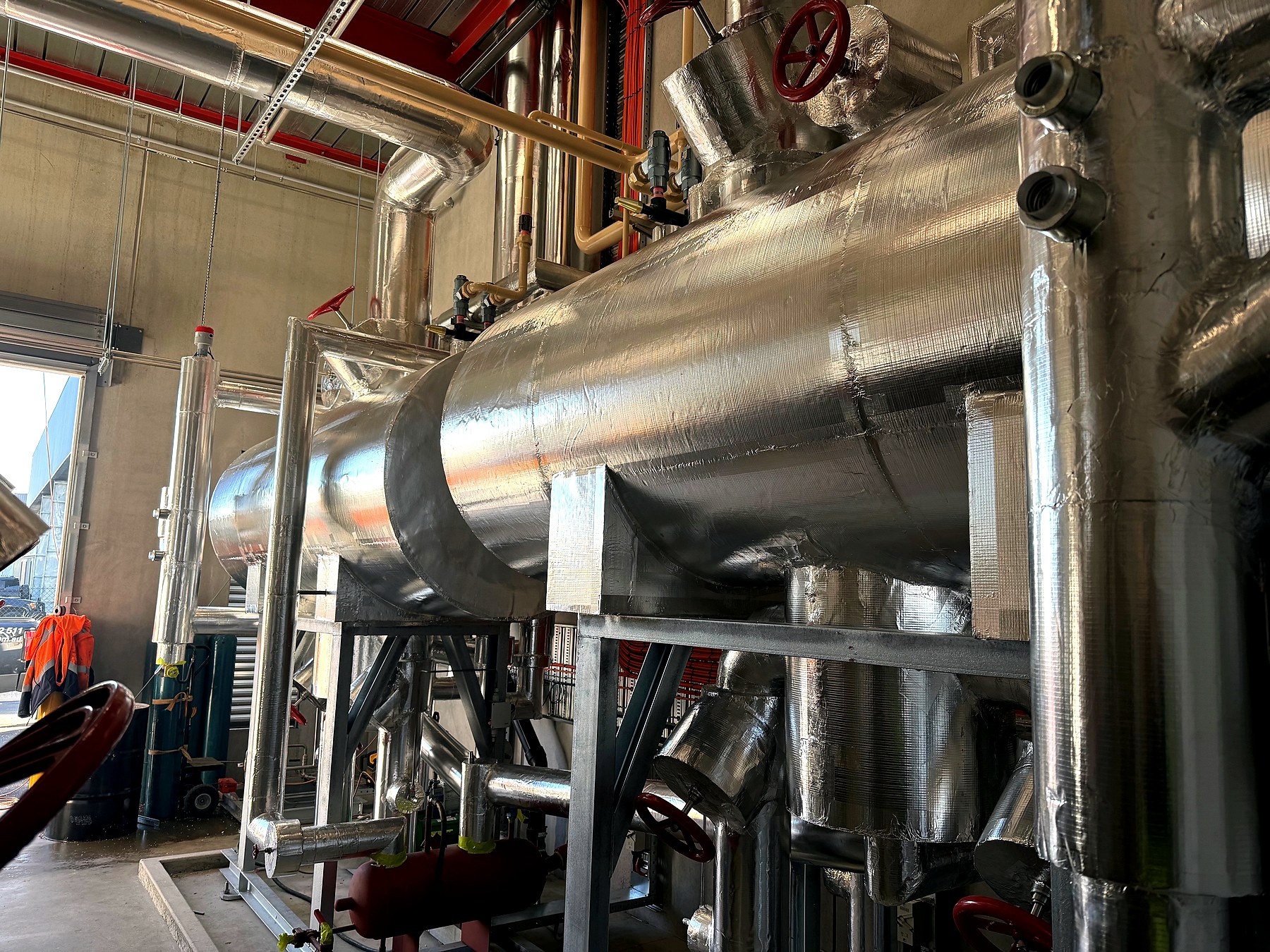

Foil-faced thermal insulation applied to a large horizontal pressure vessel and connecting pipework, reducing heat transfer and maintaining system performance.
Protective metal cladding fitted over insulation to improve durability, weather resistance, impact protection, and long-term system life.
Sheet metal cladding installed over large insulated overhead pipe bends, protecting the insulation from impact and giving a professional industrial finish.

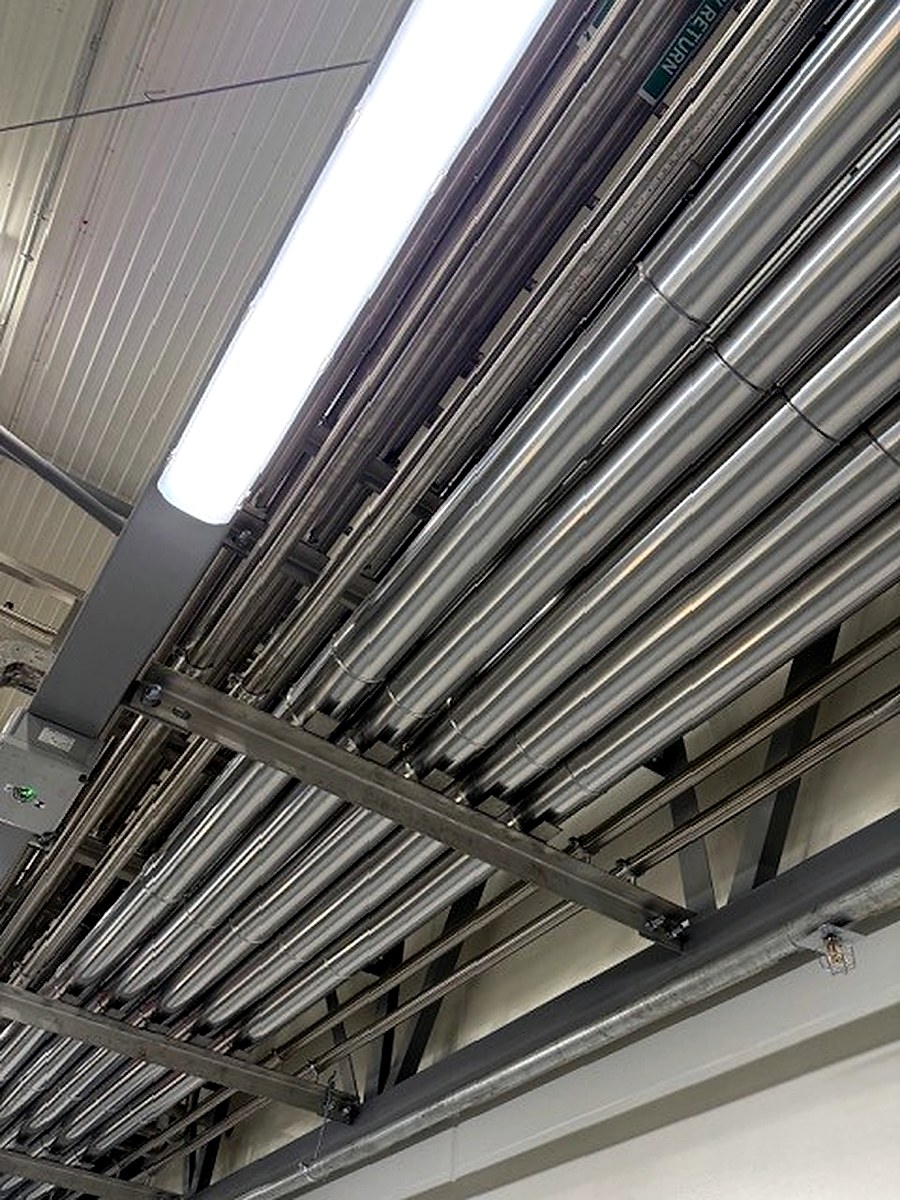

Sheet metal cladding across multiple parallel overhead pipe runs, providing clean protective coverage across an industrial distribution system.
Metal cladding across a full overhead pipe run, protecting the insulation layer from mechanical damage and maintaining a consistent industrial finish.

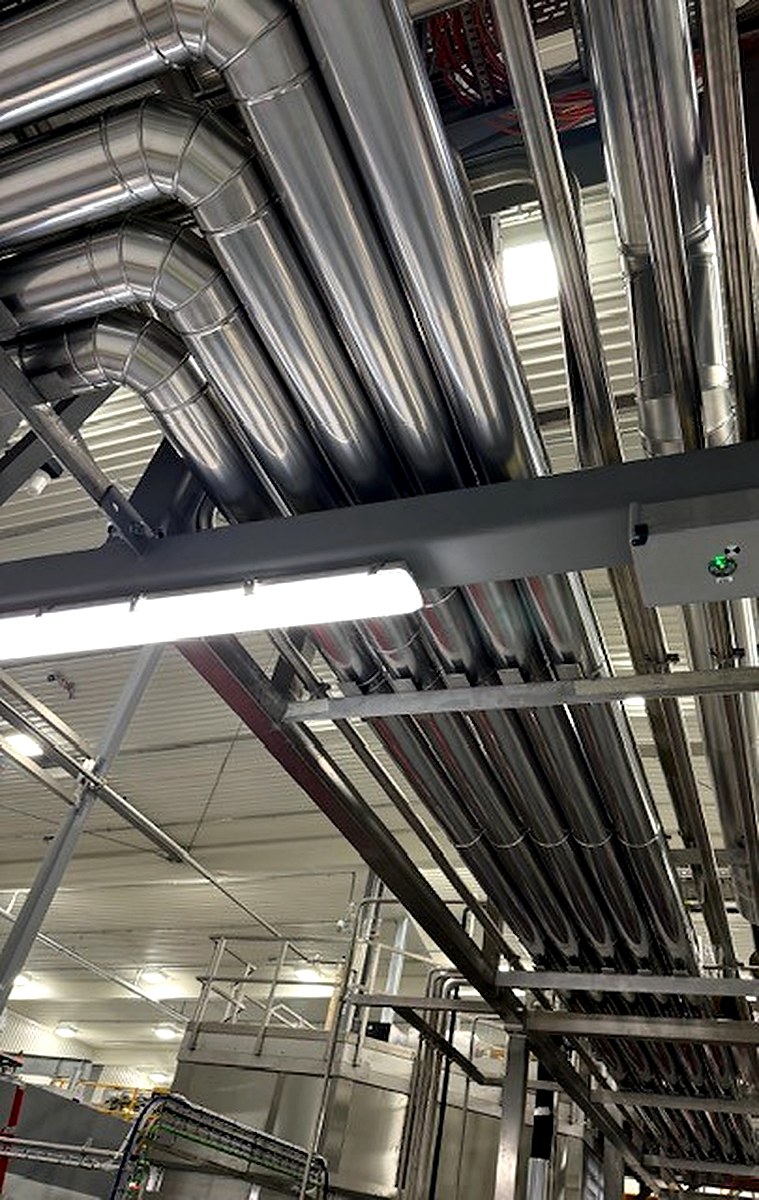

Metal cladding on insulated overhead pipework including bends and elbows, protecting the insulation and giving a neat professional finish throughout.

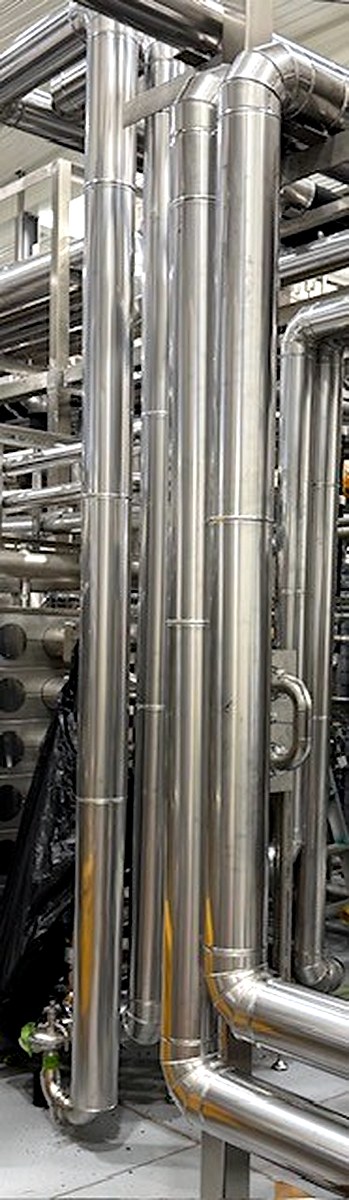

Sheet metal cladding on vertical insulated pipework in an industrial setting, protecting the insulation from impact damage and environmental exposure.
White sheet metal cladding on insulated roof-mounted pipework, providing weather-resistant protection for an exposed outdoor mechanical services installation.

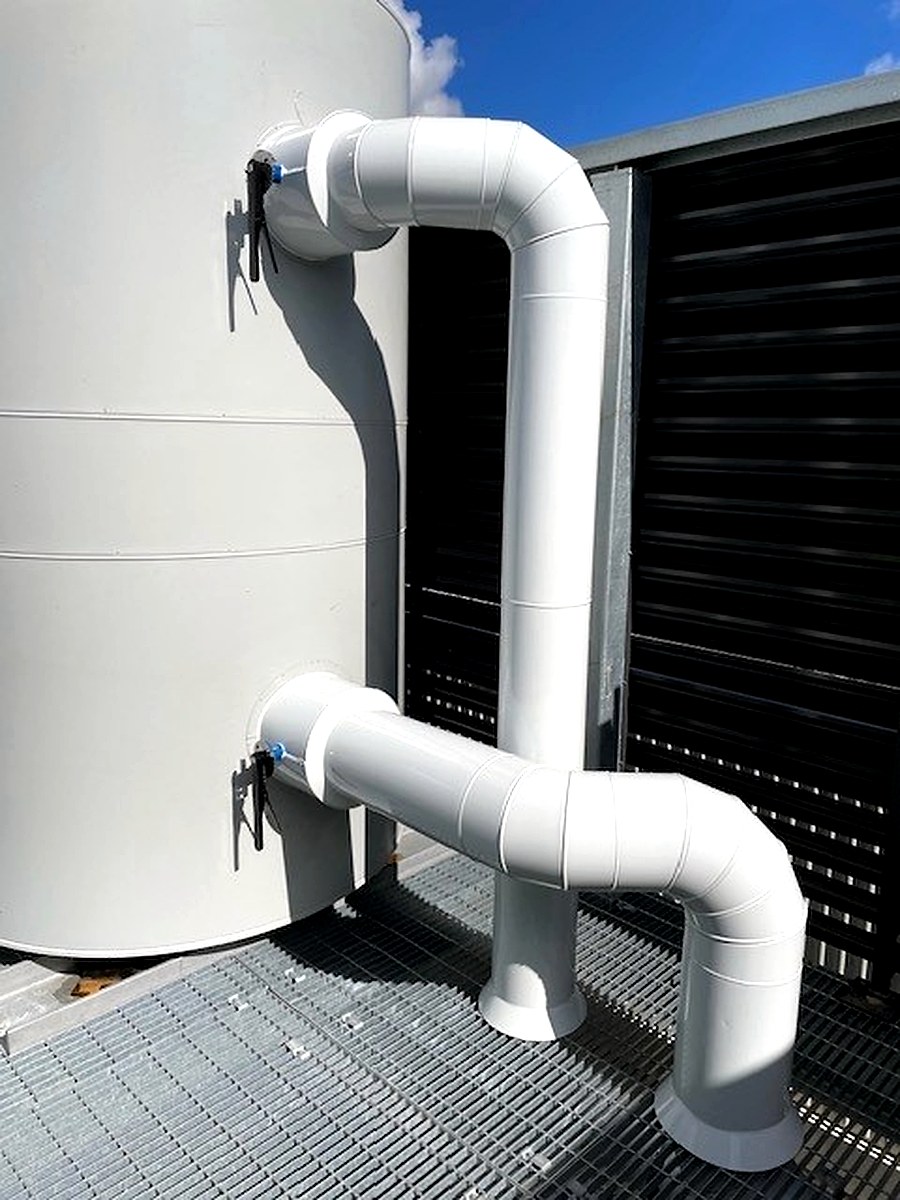

White-finished clad pipework bends on a rooftop, showing the ability to cover complex shapes with sheet metal cladding in a fully exposed environment.

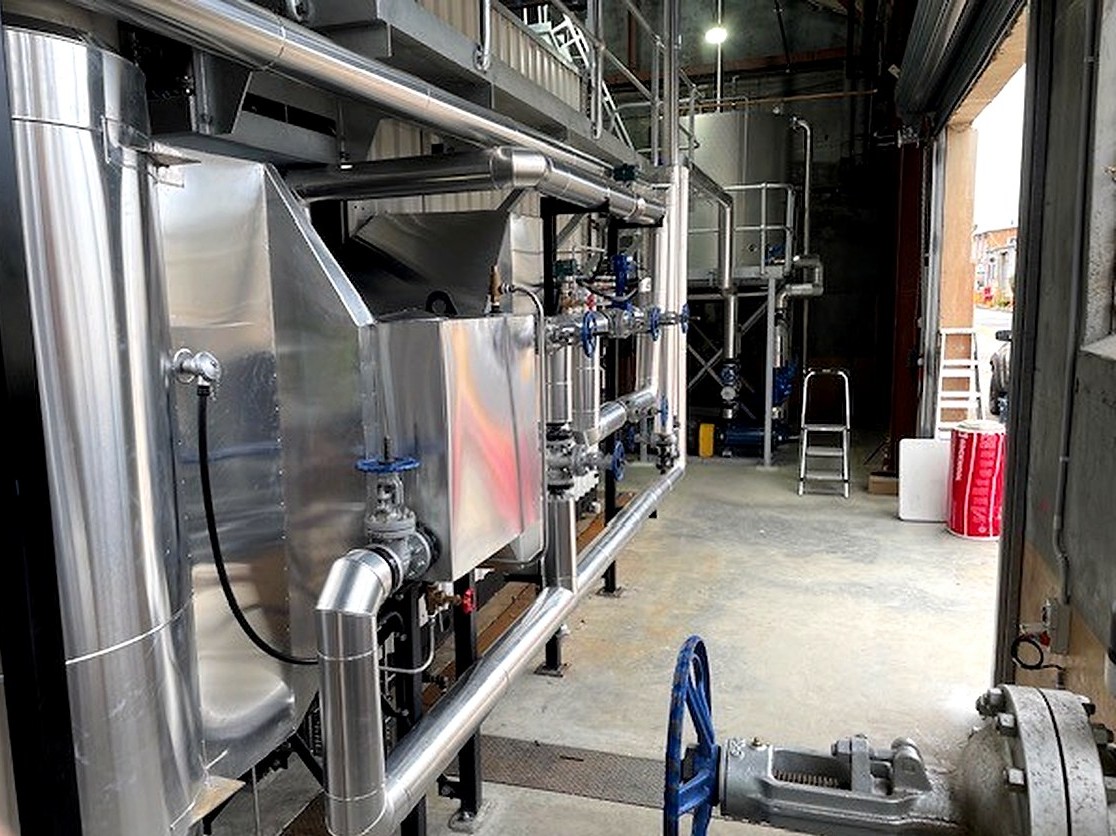

Custom-fabricated flat panel sheet metal cladding fitted to industrial process equipment, protecting the insulation while maintaining a clean accessible finish.

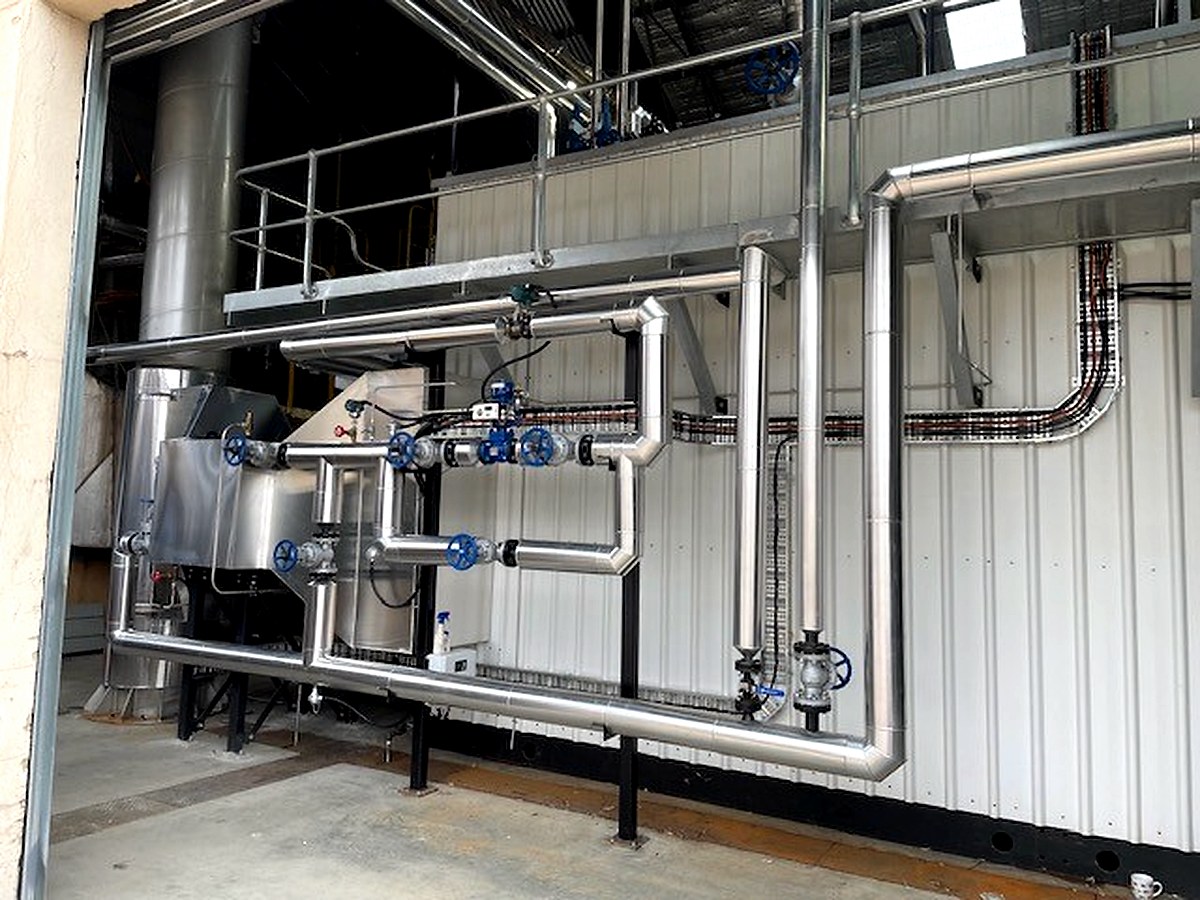

Sheet metal cladding on insulated process pipework in a busy industrial facility, protecting the insulation layer from ongoing site activity and mechanical damage.

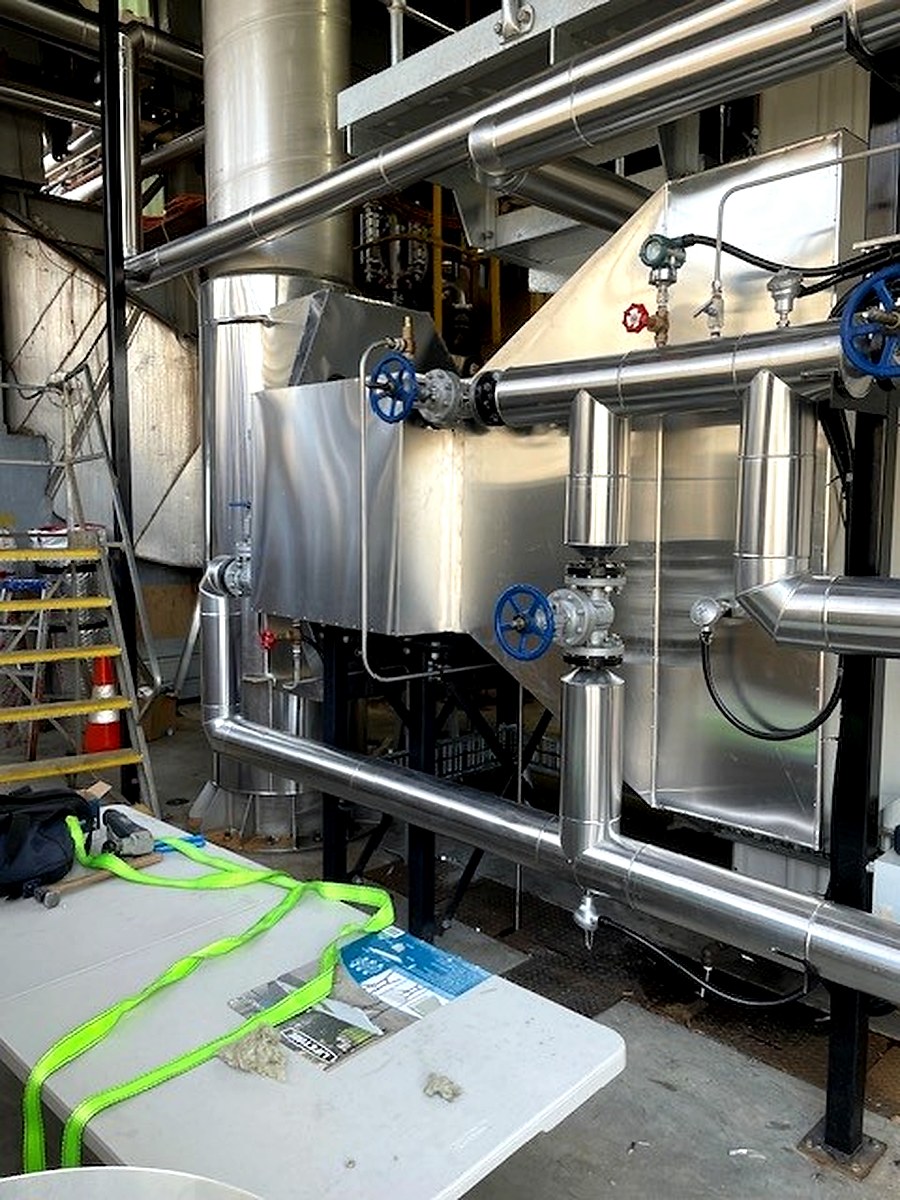

Sheet metal cladding on an insulated heat recovery vessel and associated pipework, providing a durable protective finish in an active industrial process area.

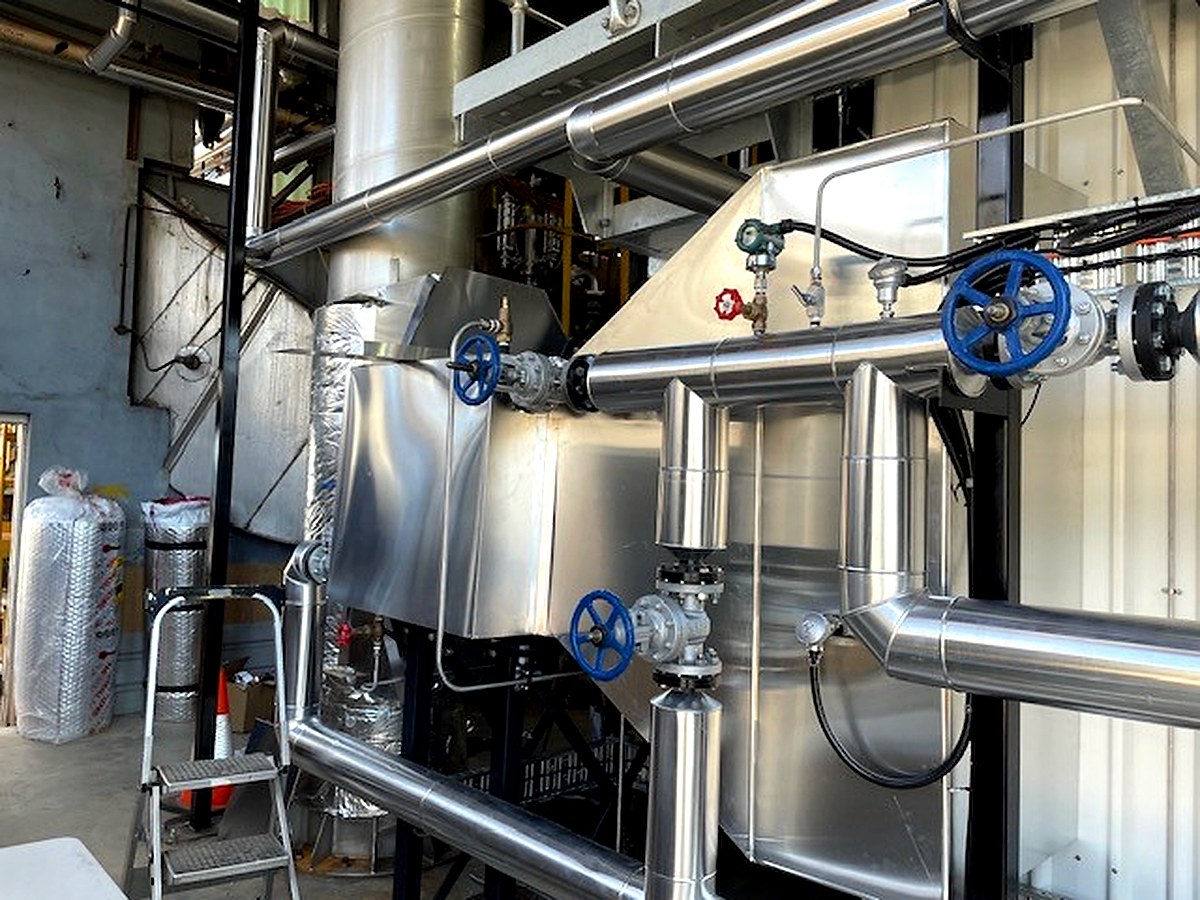

Sheet metal cladding being fitted to an industrial vessel during installation, applying a durable protective outer layer over the insulation system.

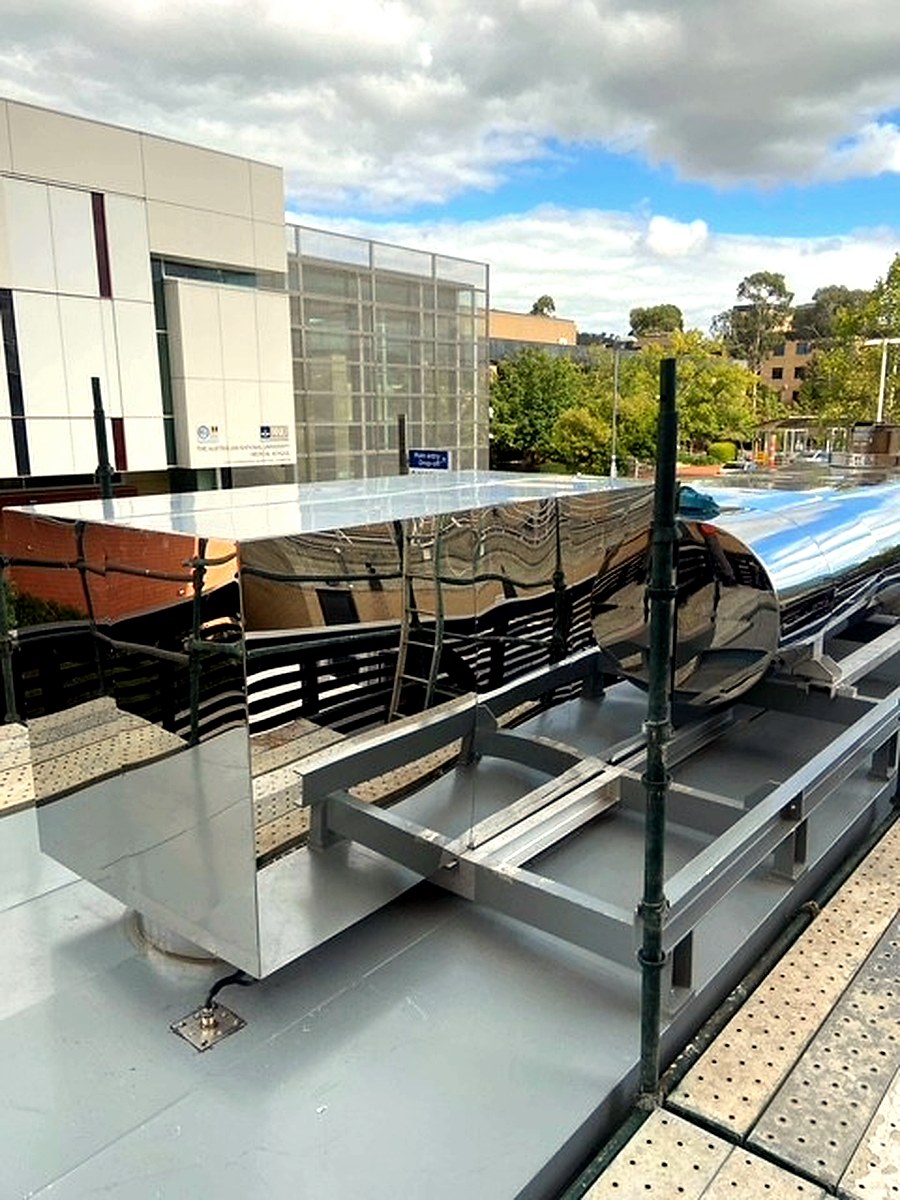

High-finish stainless steel cladding on outdoor rooftop equipment, providing weather protection and a premium appearance on an exposed installation site.
Sheet metal cladding on large insulated overhead pipe bends above industrial machinery, protecting insulation in a high-activity manufacturing environment.
Sheet metal cladding on pipe connections across heat exchange skid units during pre-commissioning, delivering a clean and protected finish for site installation.

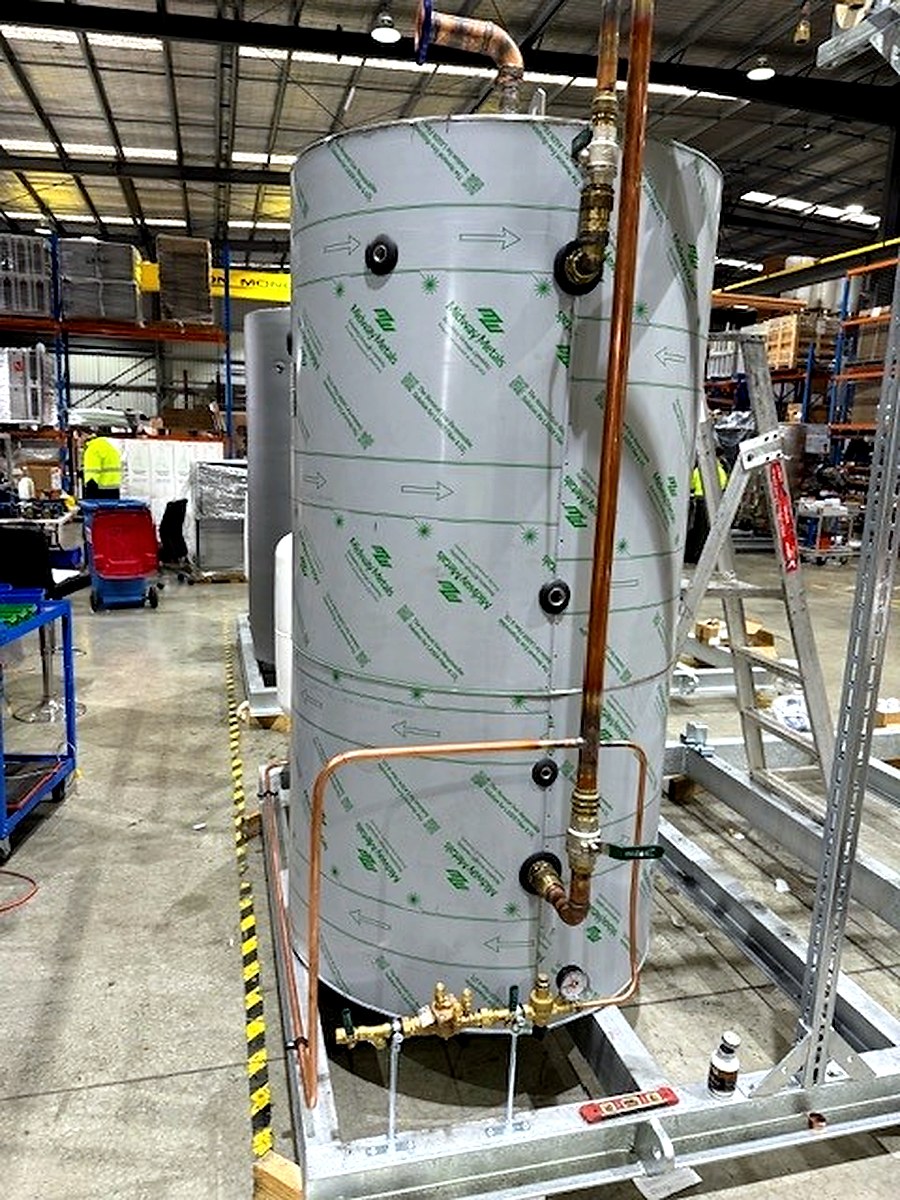

Sheet metal cladding being applied to a pressure vessel in a factory, providing weather protection and a finished appearance before the unit is installed on site.
Thermal imaging and site inspections used to identify missing insulation, exposed hot surfaces, wasted energy, and upgrade opportunities.

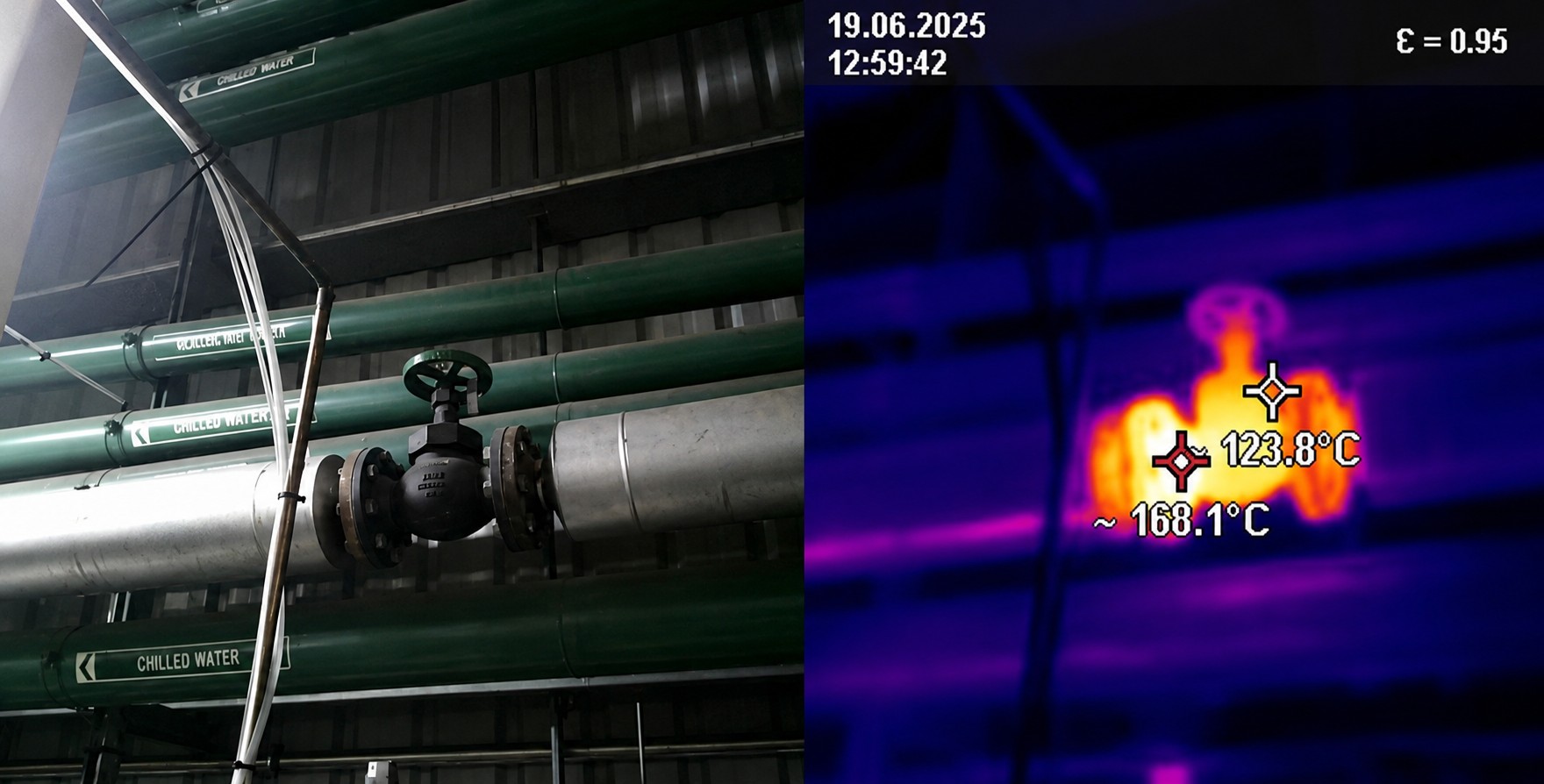

Thermal imaging reveals an uninsulated valve reaching 168°C, showing significant heat loss and a clear safety hazard that thermal jackets would eliminate.
Thermal imaging pinpoints a completely uninsulated pipe run at 166°C — one of the highest heat loss readings in the survey and a clear priority for insulation.

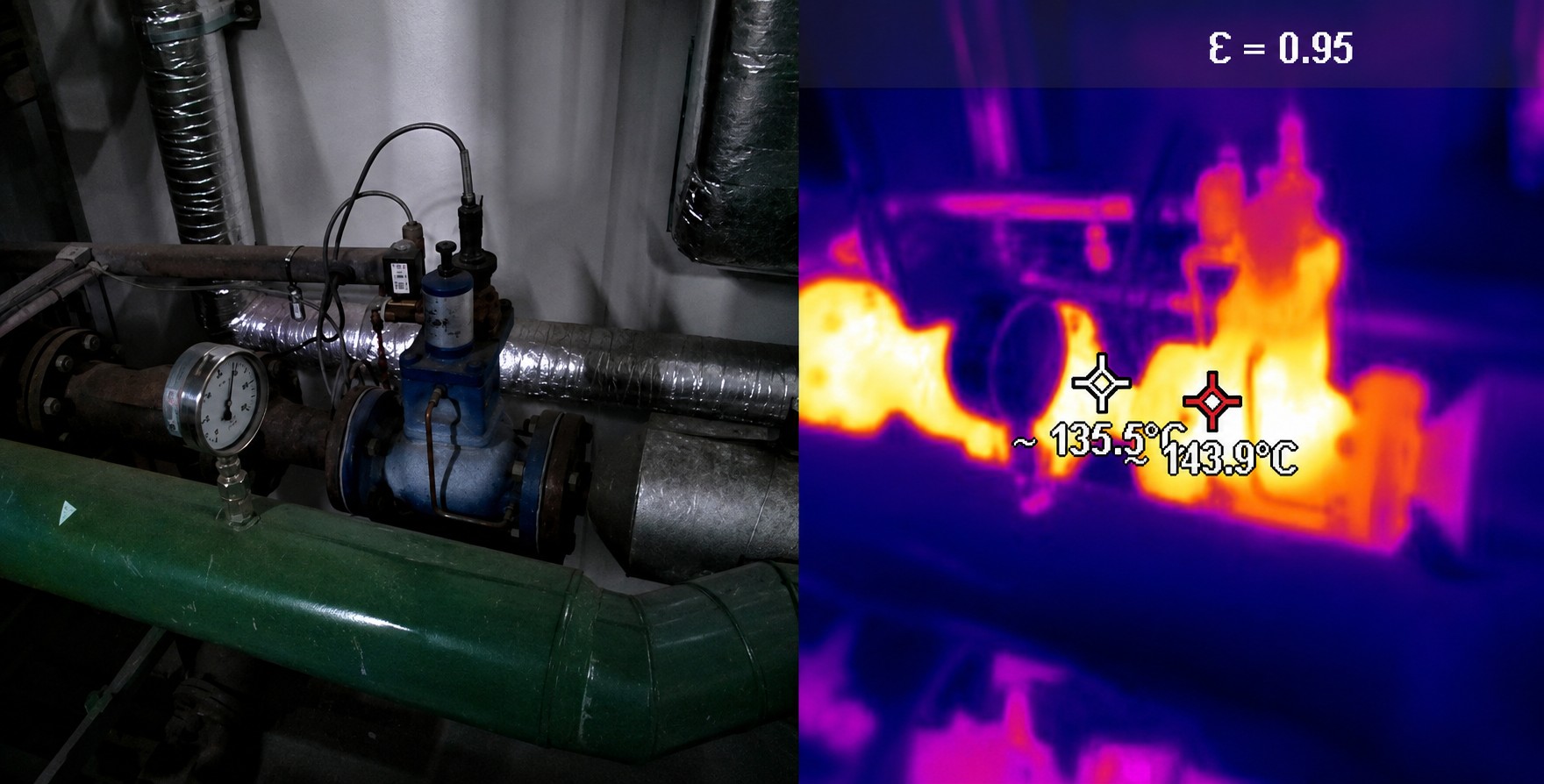

Survey identifies an uninsulated pump assembly with surface temperatures exceeding 143°C — a high-cost energy loss and a potential safety risk on site.

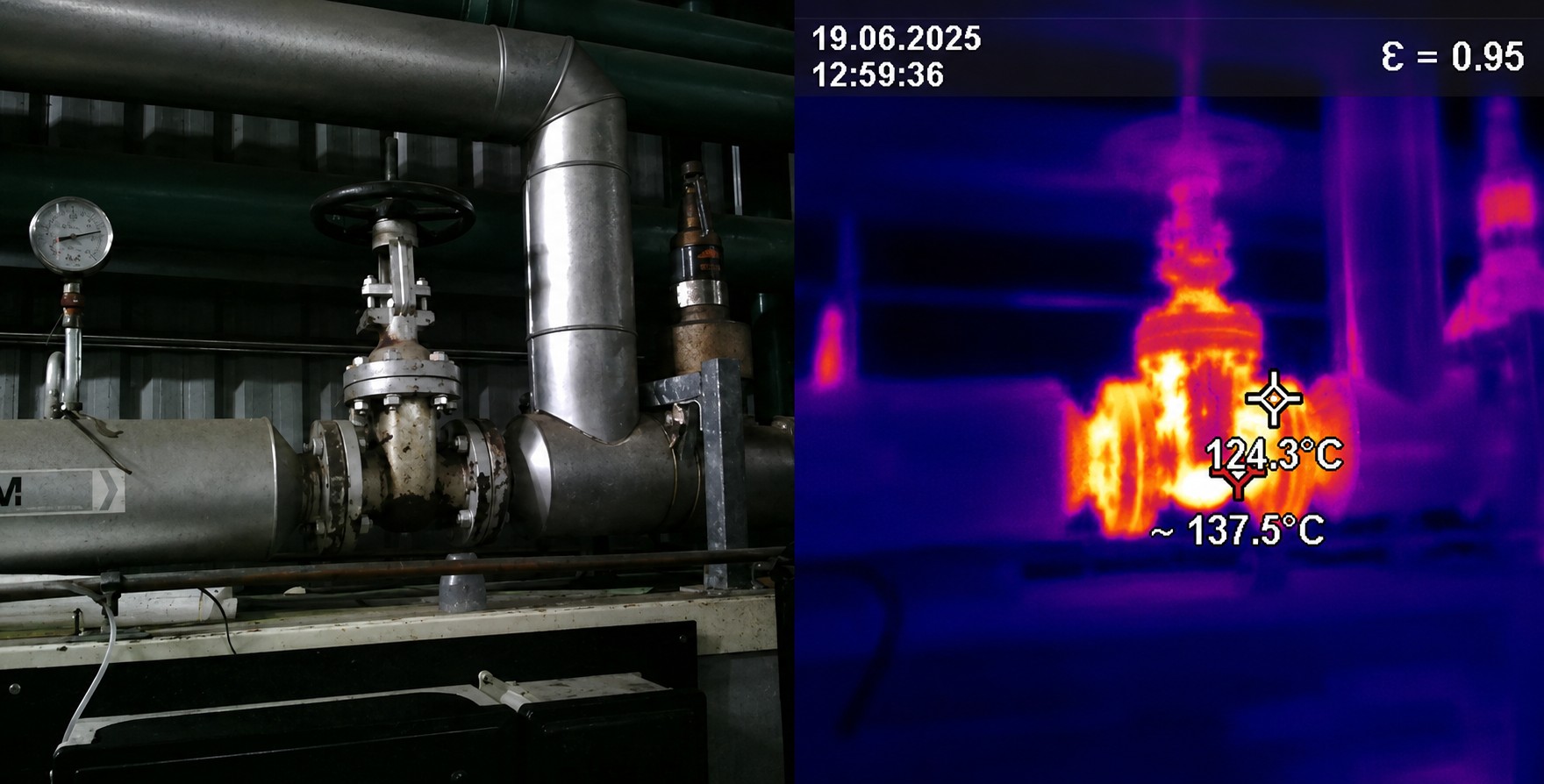

Heat loss survey documents an uninsulated valve assembly at 137°C, confirming ongoing energy waste that removable thermal jackets would directly resolve.

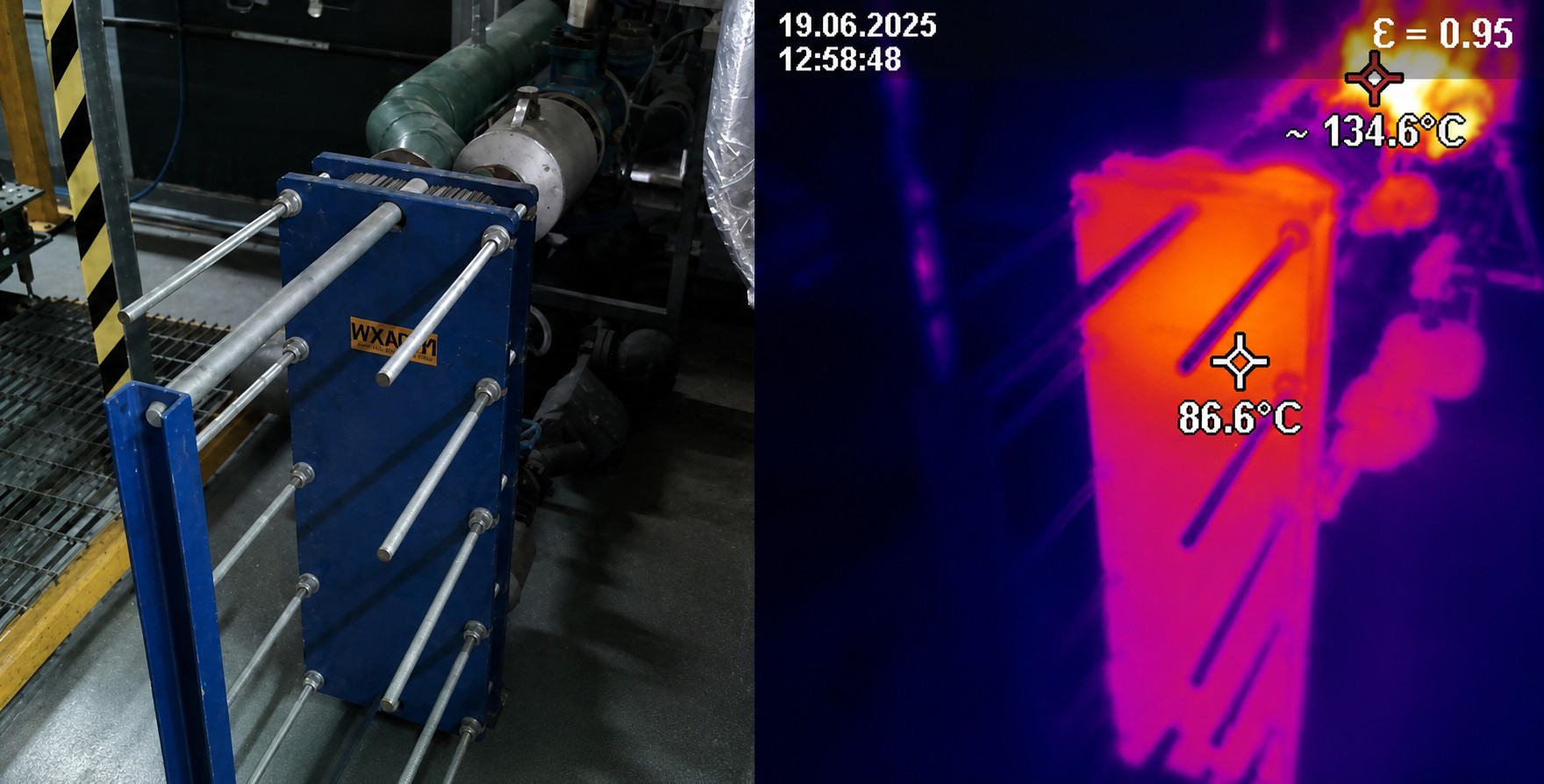

Thermal survey confirms a plate heat exchanger operating at 134°C with no insulation — a direct opportunity to reduce heat loss and improve system efficiency.

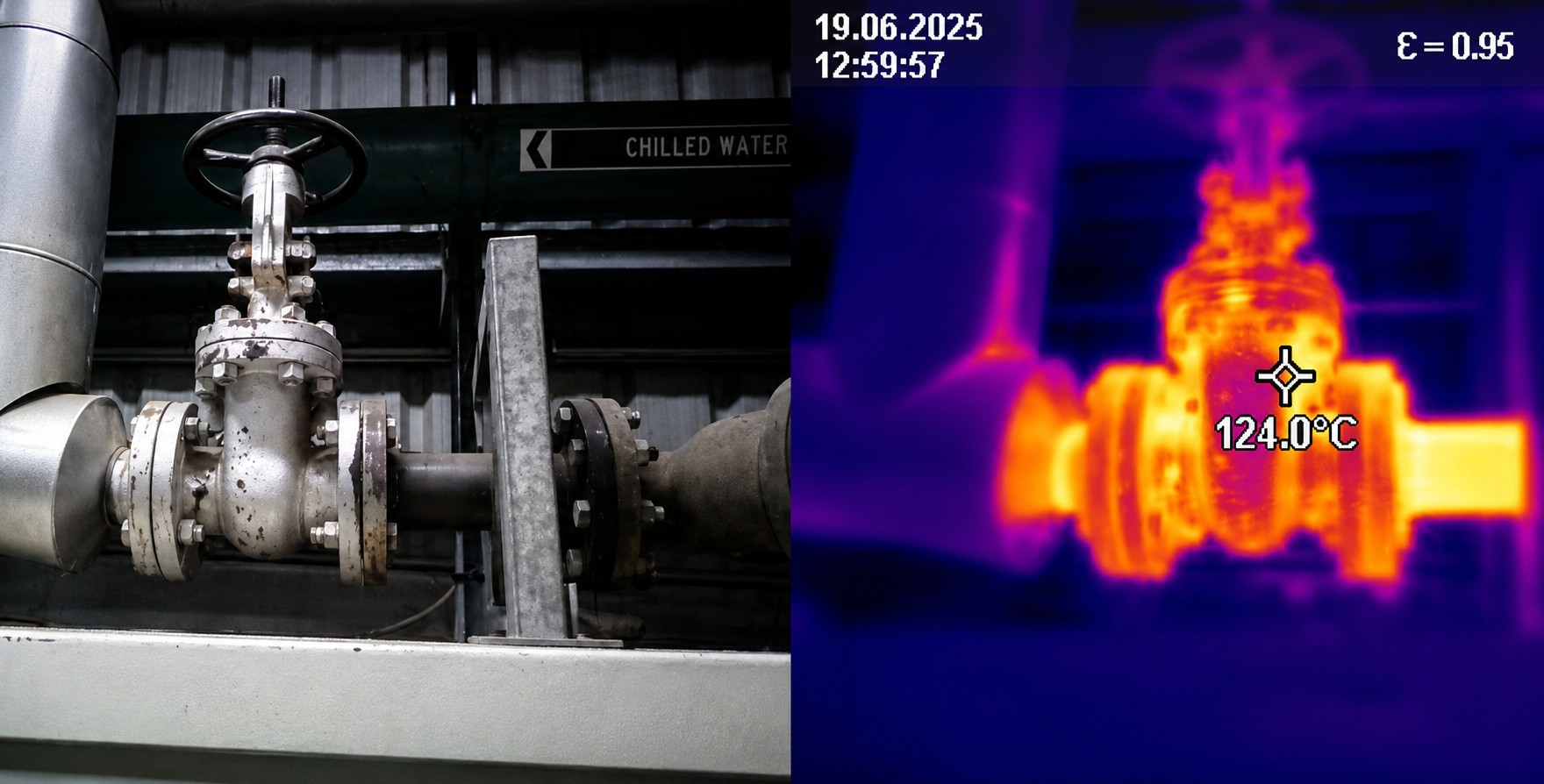

Heat loss survey identifies an uninsulated valve running at 124°C in a chilled water system, highlighting where heat transfer is degrading system performance.

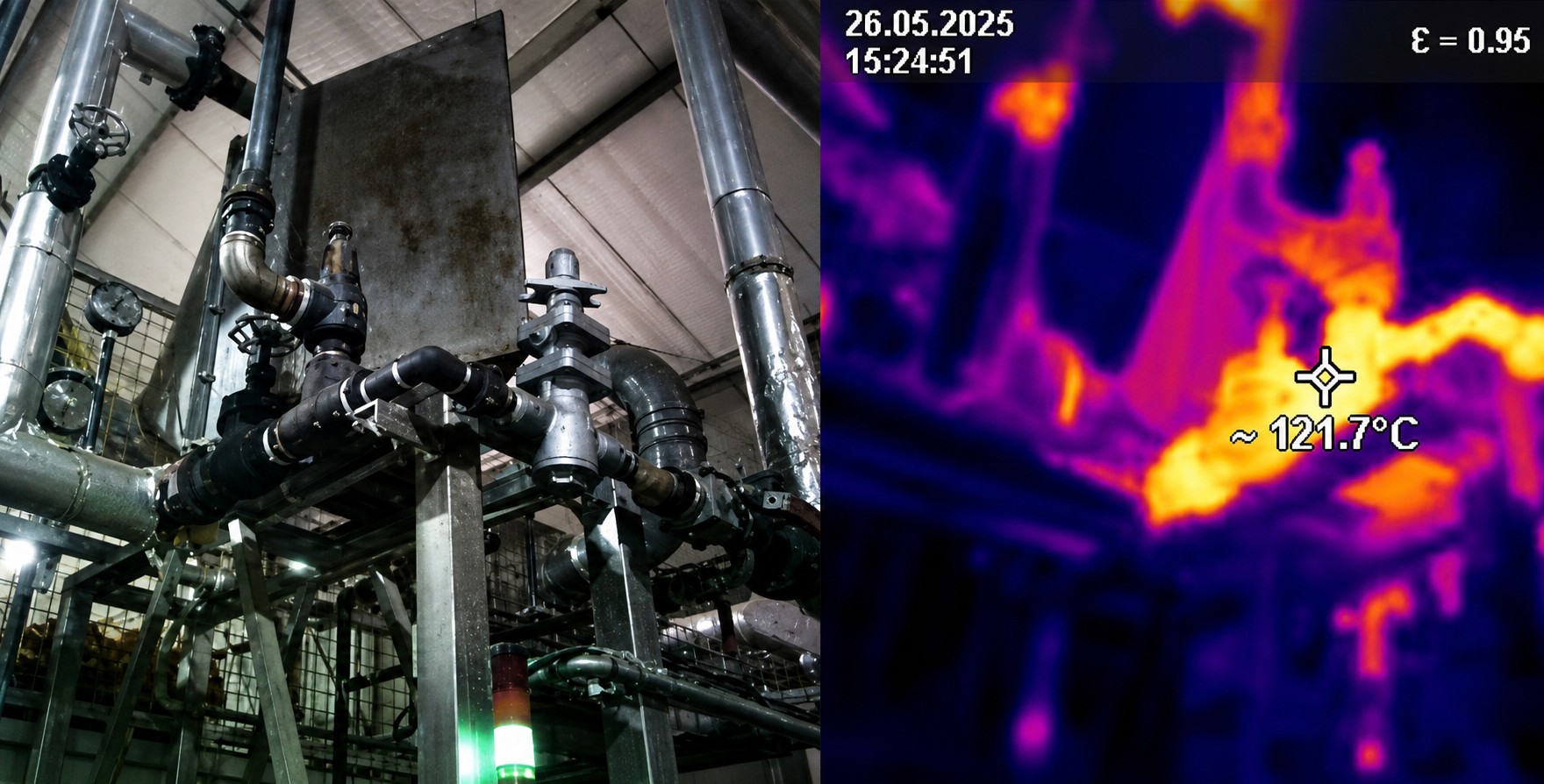

Survey identifies multiple uninsulated pipe connections at 121°C, confirming energy waste that can be directly addressed with targeted insulation upgrades.
A complimentary survey is the best starting point. Environ will assess your insulation and give you practical advice on what improvements will make the most difference.
